MOKiN USB C HUB PD100W Docking Station 4K 60Hz Type C to HDMI DP 3 USB 3.1 Gigabit Ethernet for MacBook Pro Air M2 M1 usb hub
Dear friend, Welcome to MOKiN store, there are 4 different models to choose from, please select the...
SKU:
173308902;2025126;1764980112vwUbD
Availability:
Out Of Stock
- $144.99
$217.99- $144.99
- Unit price
- per
Please hurry! Only 0 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$144.99
Couldn't load pickup availability
Description
x
Dear friend, Welcome to MOKiN store,
there are 4 different models to choose from, please select the correct model according to the port you need, if you have any questions, please feel free to contact us!
------------------------------------------------------------------------------------------------------------
❶ 13 in 1(2HDMI DP):USB C to 4K60Hz HDMI+4K30Hz HDMI+4K60Hz DP+2USB C3.1+USB A 3.1+2USB A2.0+RJ45+Audio+SD/TF+PD

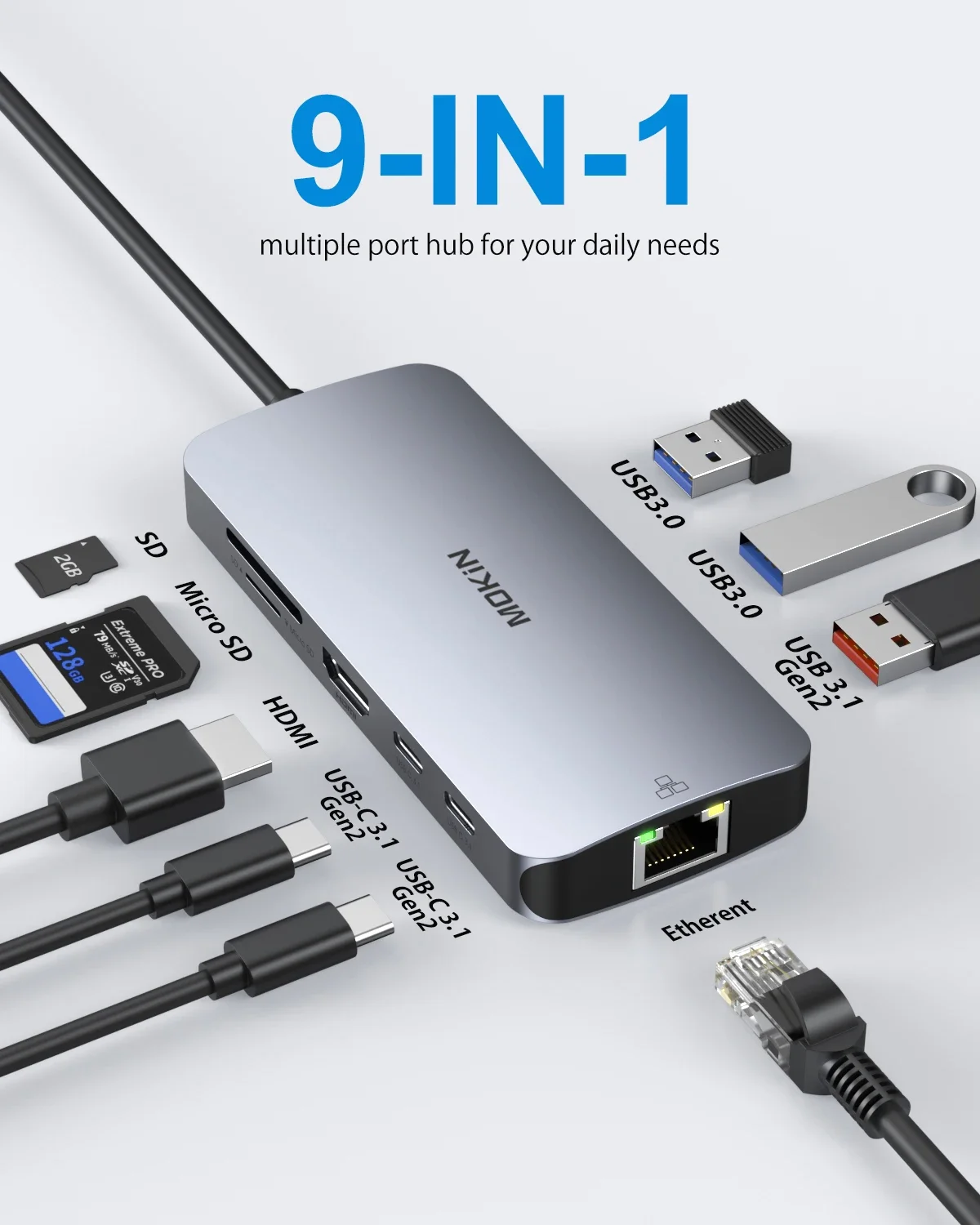

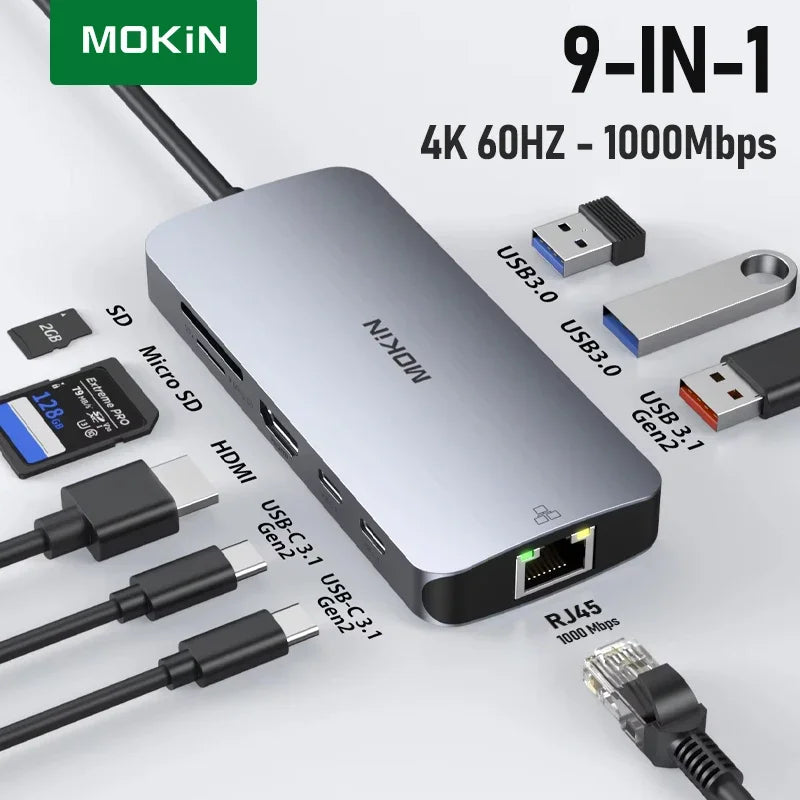

❷ 9 in 1(HDMI RJ45):USB C to 4K60Hz HDMI+2*USB3.0+USB3.1+2USB-C 3.1+SD/TF+RJ45

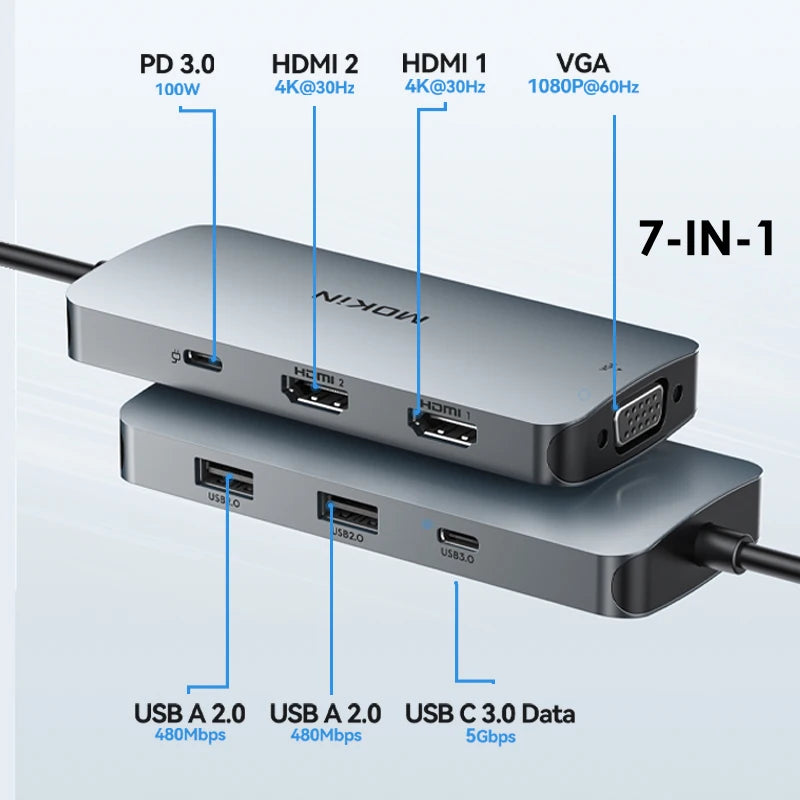

❸ 7 in 1(2HDMI VGA):USB C to 4K60Hz HDMI+4K30Hz HDMI+VGA+2USB A2.0+USB C3.0+PD

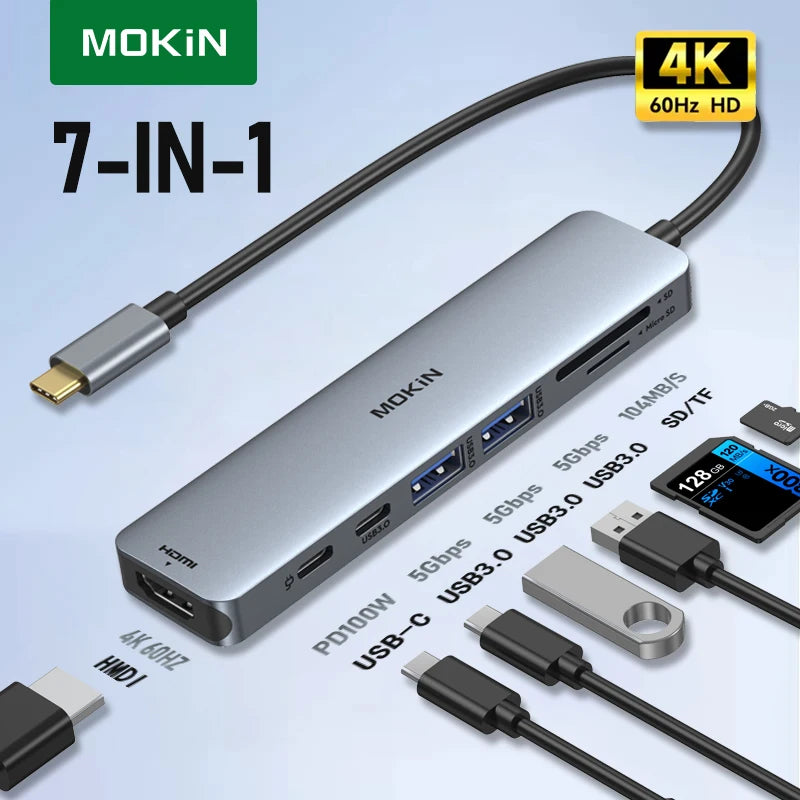

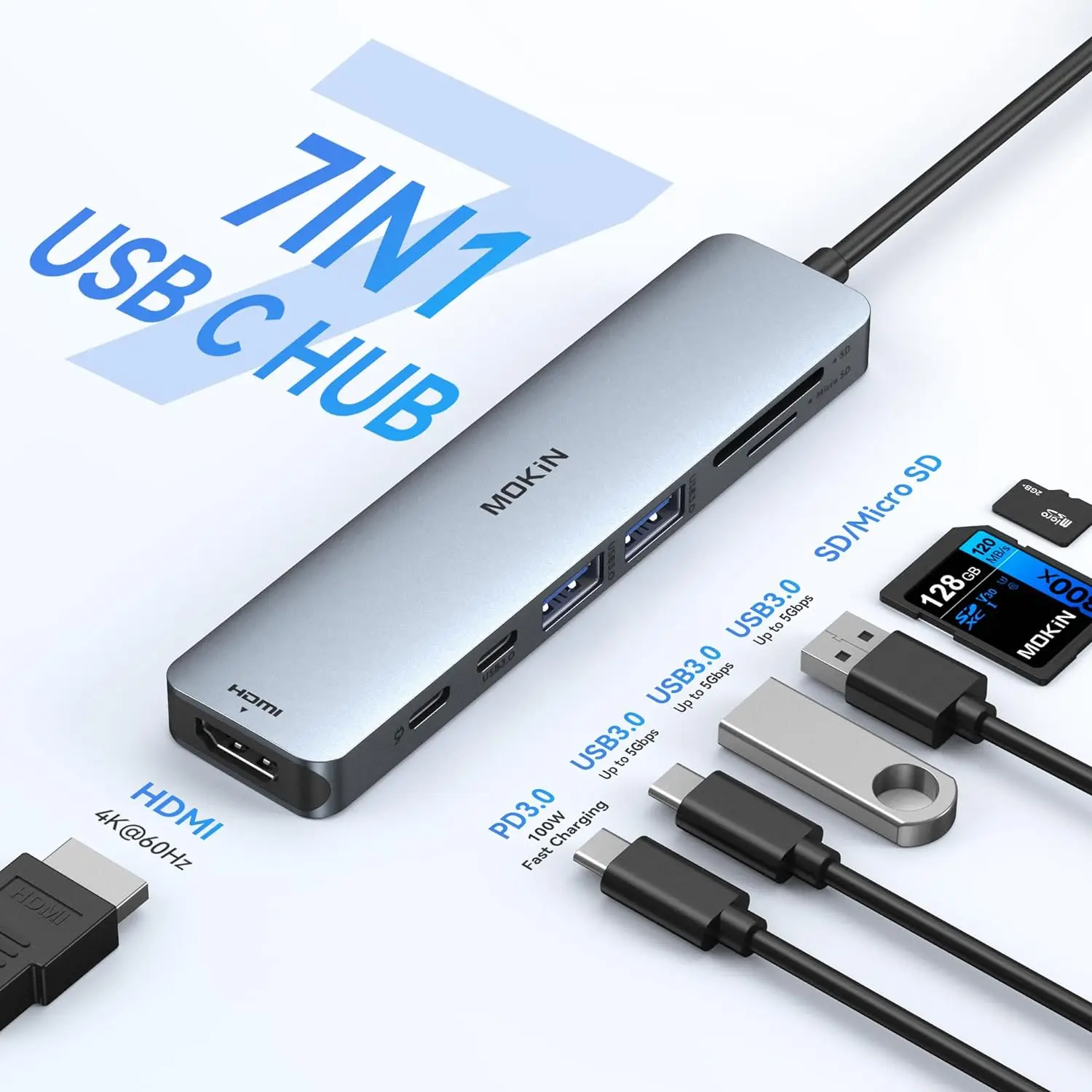

❹ 7 in 1(HDMI USB3.0):USB C to 4K60Hz HDMI+USB C3.0+2USB A 3.0+SD/TF+PD
Description Introduction:
Ethernet interface: RJ45 1Gbps
HDMI Port: 4K/60hz/10bit(MAX)1080p/60hz/48bit 720p/60hz/48bit 3D/1080p /720p etc
DP Port: 4K/60hz/10bit(MAX)1080p/60hz/48bit 720p/60hz/48bit 3D/1080p /720p etc
VGA Port: 1080p/60hz/24bit 720p/60hz/24bit 480p/60hz/24bit
USB A 3.1(Also known as: USB 3.2 Gen 2x1): Speed up to 10Gbps, compatible with USB 3.0/USB 2.0/1.1/1.0
USB A 3.0(Also known as: USB 3.2 Gen 1x1): Speed up to 5Gbps backward compatible with USB 2.0/1.1/1.0
USB2.0 Port: Speed up to 480Mbps,backward compatible with USB1.1/1.0
SD/TF Card Reader: Read: 20-40MB/S, Write: 10-30MB/S ,(support simultaneous operation)
Audio Port: 3.5mm Audio/Microphone (TRRS, CTIA Standard)
Power Delivery 3.0: Max 100W charging, auto-adjust to the suited power. Such as 87W for Mac.
HDMI Port: 4K/60hz/10bit(MAX)1080p/60hz/48bit 720p/60hz/48bit 3D/1080p /720p etc
DP Port: 4K/60hz/10bit(MAX)1080p/60hz/48bit 720p/60hz/48bit 3D/1080p /720p etc
VGA Port: 1080p/60hz/24bit 720p/60hz/24bit 480p/60hz/24bit
USB A 3.1(Also known as: USB 3.2 Gen 2x1): Speed up to 10Gbps, compatible with USB 3.0/USB 2.0/1.1/1.0
USB A 3.0(Also known as: USB 3.2 Gen 1x1): Speed up to 5Gbps backward compatible with USB 2.0/1.1/1.0
USB2.0 Port: Speed up to 480Mbps,backward compatible with USB1.1/1.0
SD/TF Card Reader: Read: 20-40MB/S, Write: 10-30MB/S ,(support simultaneous operation)
Audio Port: 3.5mm Audio/Microphone (TRRS, CTIA Standard)
Power Delivery 3.0: Max 100W charging, auto-adjust to the suited power. Such as 87W for Mac.
Operating System: Windows ,Mac OS, iPad OS, Chrome OS, Android OS, Linux, etc
MOKiN USB C HUB 4K60Hz Type C to HDMI 4K DP 3 USB 3.1 Gigabit Ethernet PD100W Docking Station for MacBook Pro Air M2 M1 usb hub

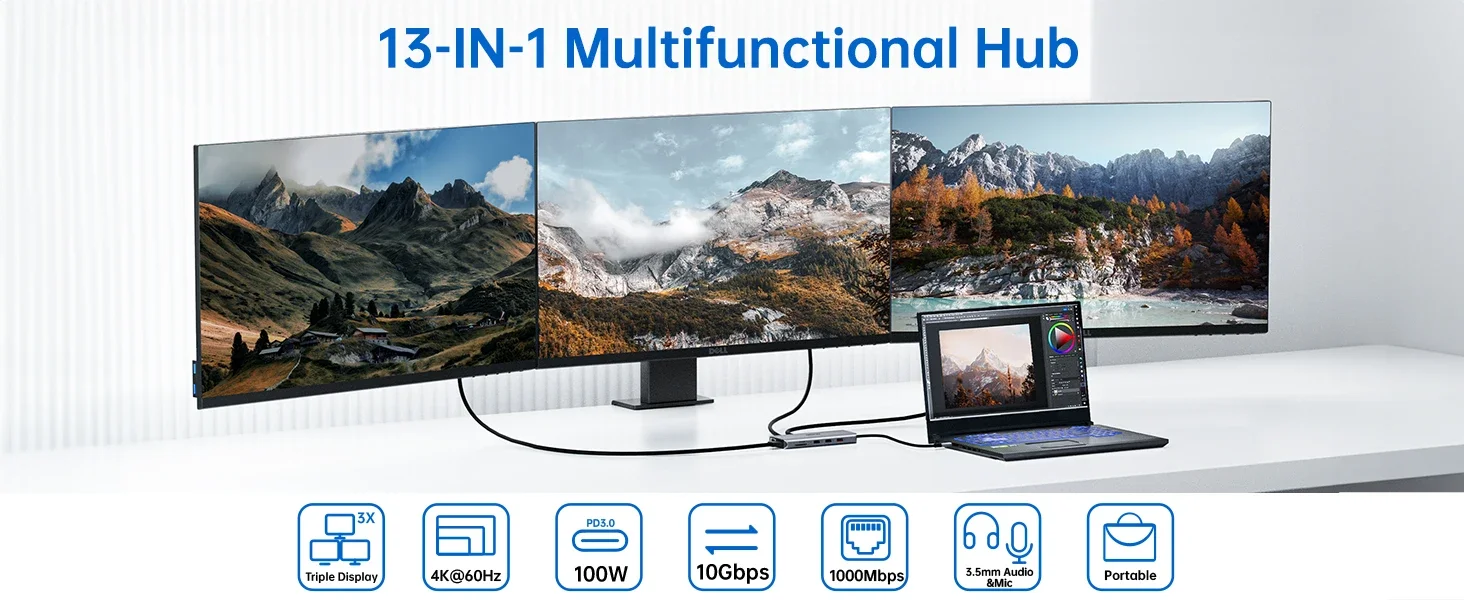

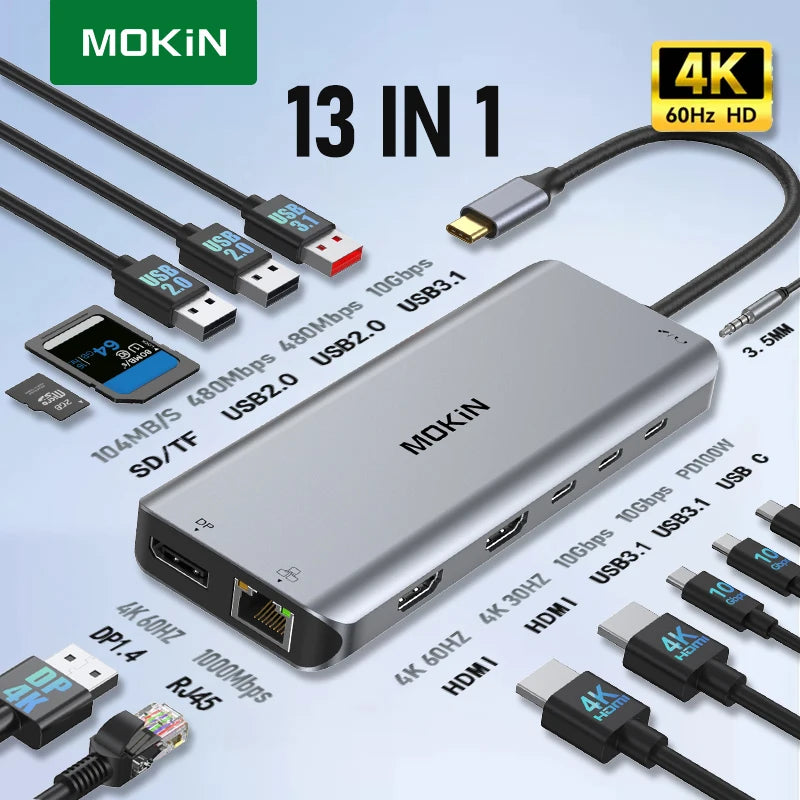

★13 IN 1( USB C to 2HDMI+DP+2USB C3.1+USB A 3.1+2USB A2.0+RJ45+Audio+SD/TF+PD)

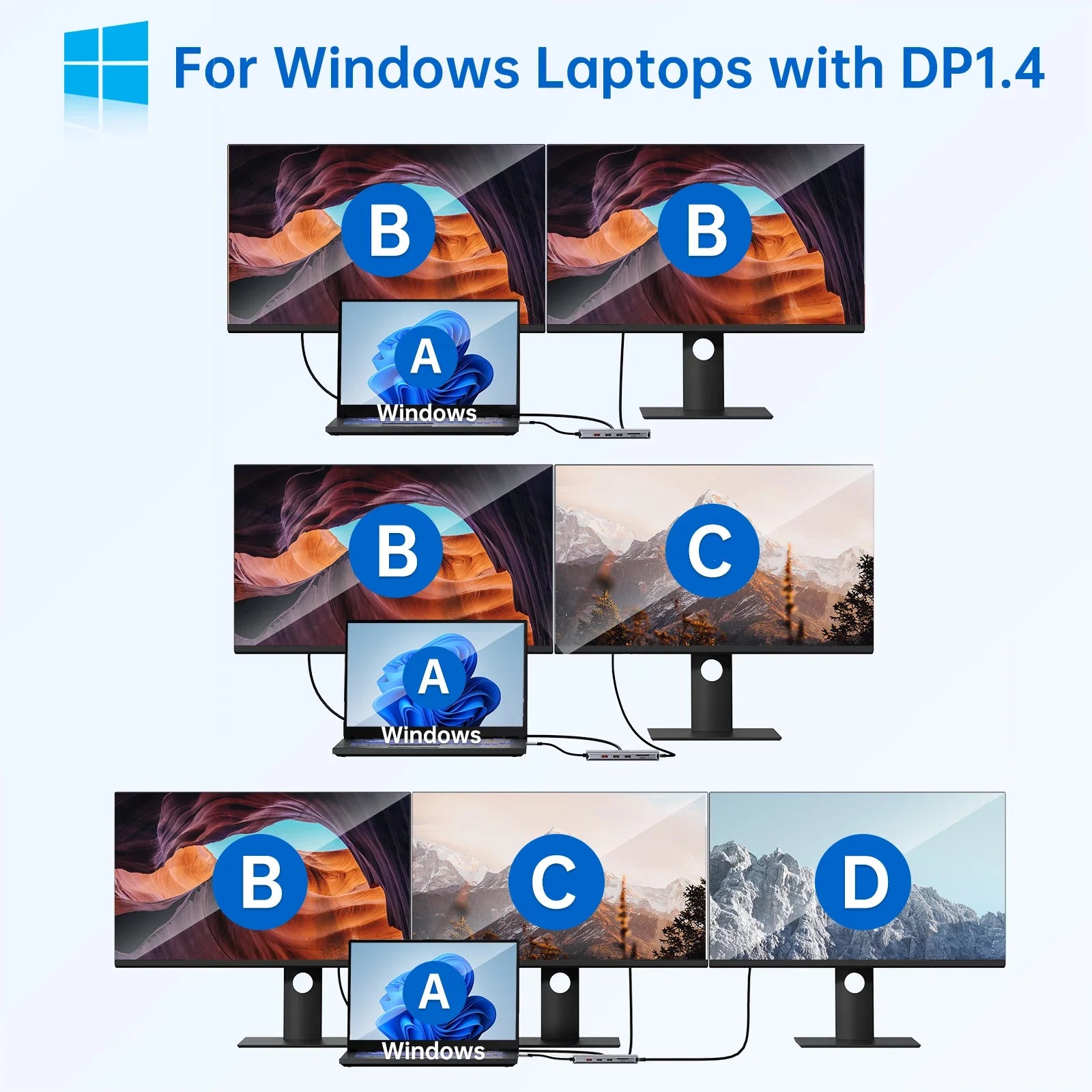

Windows:
Mirror mode: AB(2 display show) ABB(3 display show) ABBB(4 display show)
Extend mode: AB(2 display show) ABC(3 display show) ABCD(4 display show)

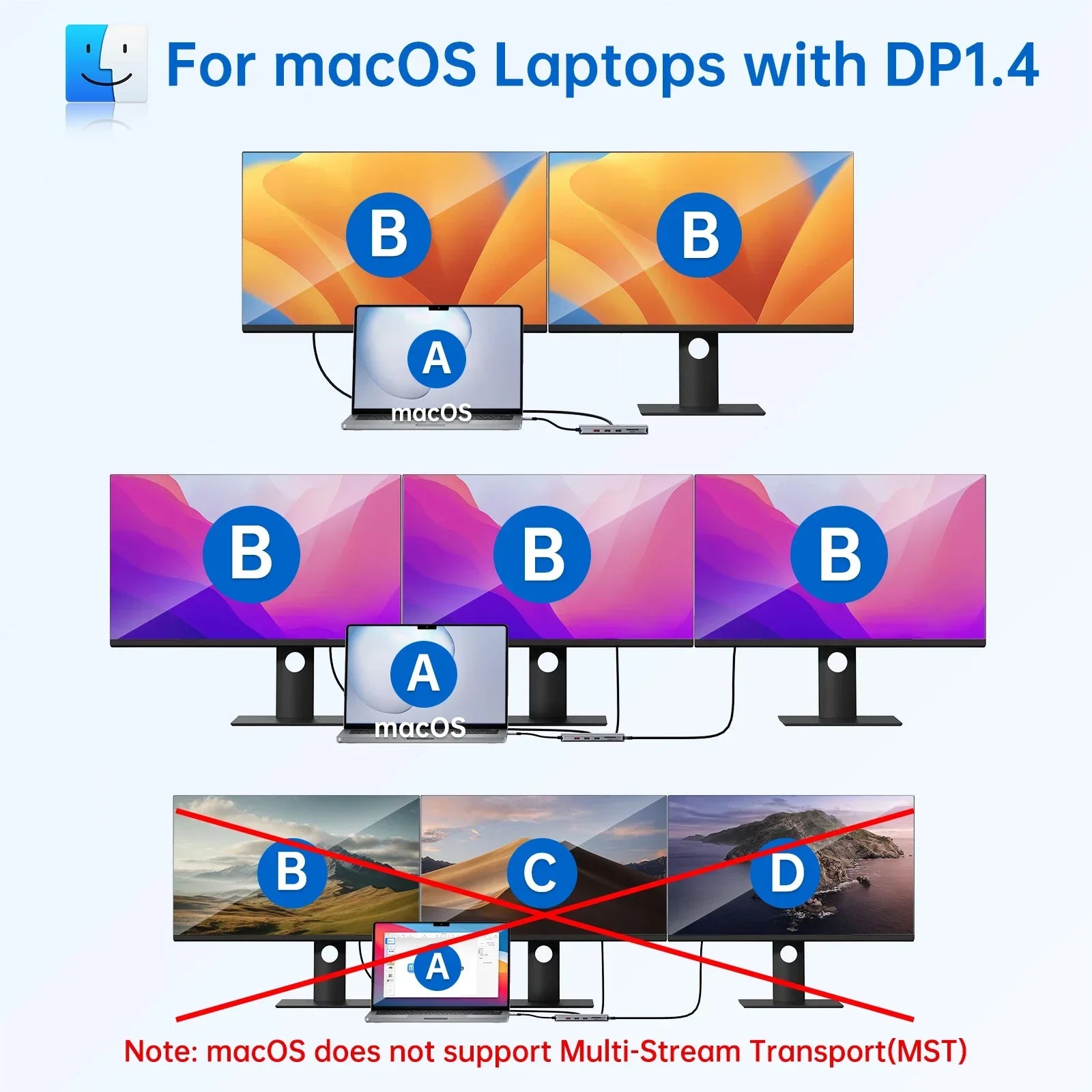

Mac OS:
Mirror mode: AB(2 display show) ABB(3 display show) ABBB(4 display show)
Extend mode: AB(2 display show) ABB(3 display show) ABBB(4 display show)
Gigabit Ethernet:1000 Mbps RJ45

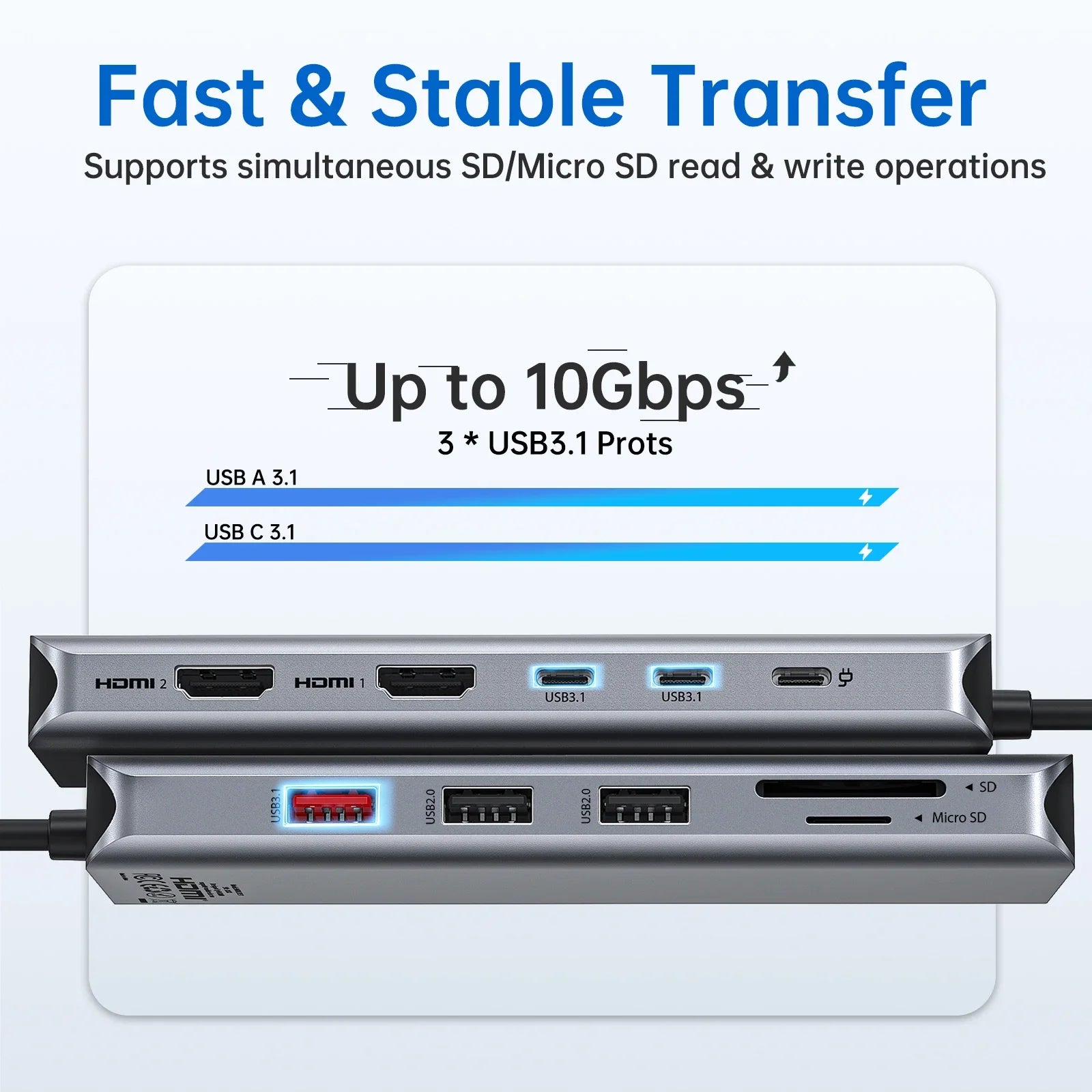

High Speed USB 3.1 ports/Superior Data-storing Versatility
With 2 USB-A 3.1 and 1 USB-C 3.1 ports, 2 hdmi ports enables data transfer speeds of up to 10Gbps. Connect your USB devices like a mouse, keyboard, or USB disk to your laptop with ease.
【Efficient Data Transfer】
Speed up to 104Mb/s.The SD and TF Card can be read simultaneously.Works with SD,SDHC,SDXC ,Micro SD,MMC (SDXC :with high storage capacity up to 2TB).

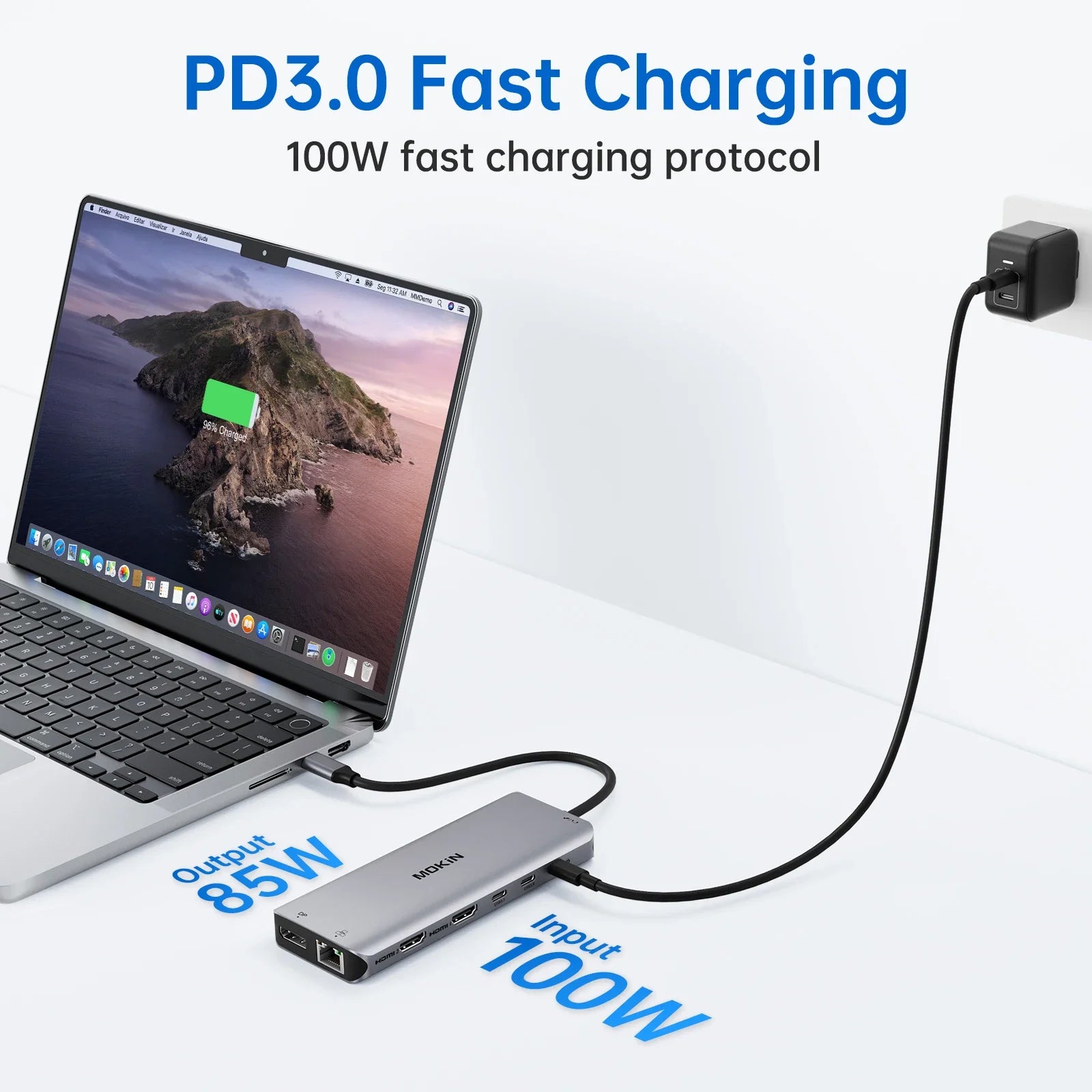

Fast Power Delivery
The 3.5mm Audio Port with mic and audio-out function. Support 100W USB-C 87W(safty) charging for your laptops while using otherports of this dual hdmi adapter.
NOTE:
We understand that there is currently a wide variety of notebooks available.
Kindly checking and make sure that your device has one of Thunderbolt 3/4, full-function USB C port (supports Displayport/ DP Alt mode), USB 4.0.
USB C to 2HDMI+DP+2USB C3.1+USB A 3.1+2USB A2.0+RJ45
USB C to 4K60Hz HDMI+2*USB3.0+USB3.1+2USB-C 3.1+SD/TF+RJ45
USB C to 2USB A2.0+USB C3.0+HDMIx2+VGA+PD
USB C to 4K60Hz HDMI+USB C3.0+2USB A 3.0+SD/TF+PD
FAQ
Q1. Why the Resolution can't achieve 4K@60HZ ?
A:Makesure both your monitor and host laptop support 4K@60Hz video output, otherwise, and only using single HDMI will achieve 4K@60HZ.
Q2.Sometimes WiFi stopped working while hard disk connected to hub, how to do?
A:2.4Gnetwork is easily disturbed. You can switch to 5G network. Or you can adjust the placement of the hard disk, move to suitable place.
Q3. If display stopped after connect high current hard disk, how to do?
A: Must be charged. Please supply power by power adapter.
Q4. What to do if the HDMI monitor is not recognized by your laptop
A:1. Make sure your laptop's USB C port supports DisplayPort/video output.
2. Check your HDMI cable and monitor. (Connect the monitor to the laptop directly, see if it works)
3. Provide sufficient power supply from the USB C hub.
Q5. Why is the screen sometimes black?
A:The reason why the screen is black is that the power consumption of the docking station is too high, so you need to charge the laptop through the charging port on the docking station, so you can solve the problem of black screen of the display.
