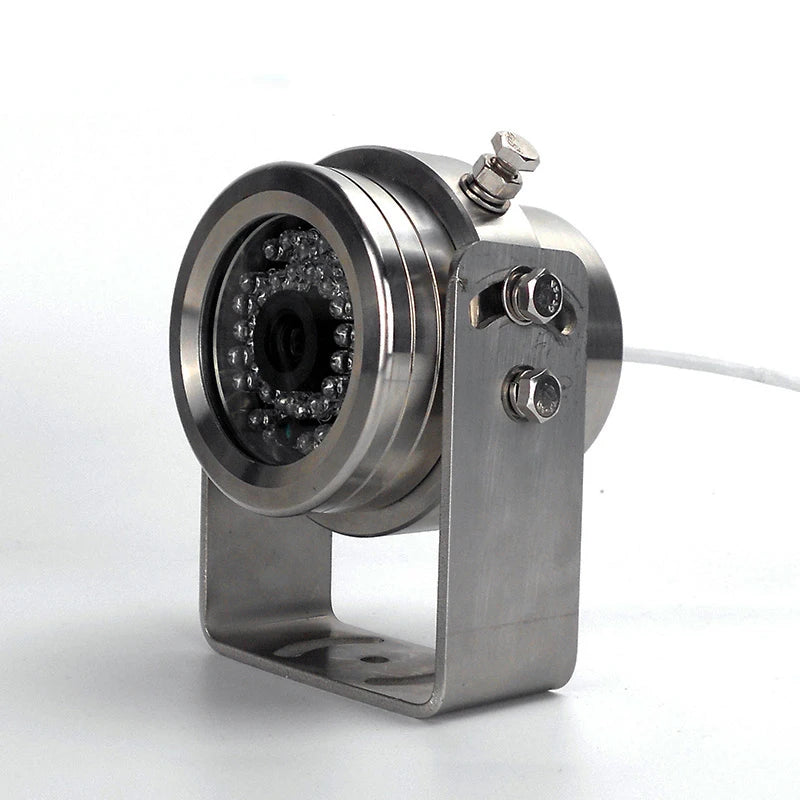

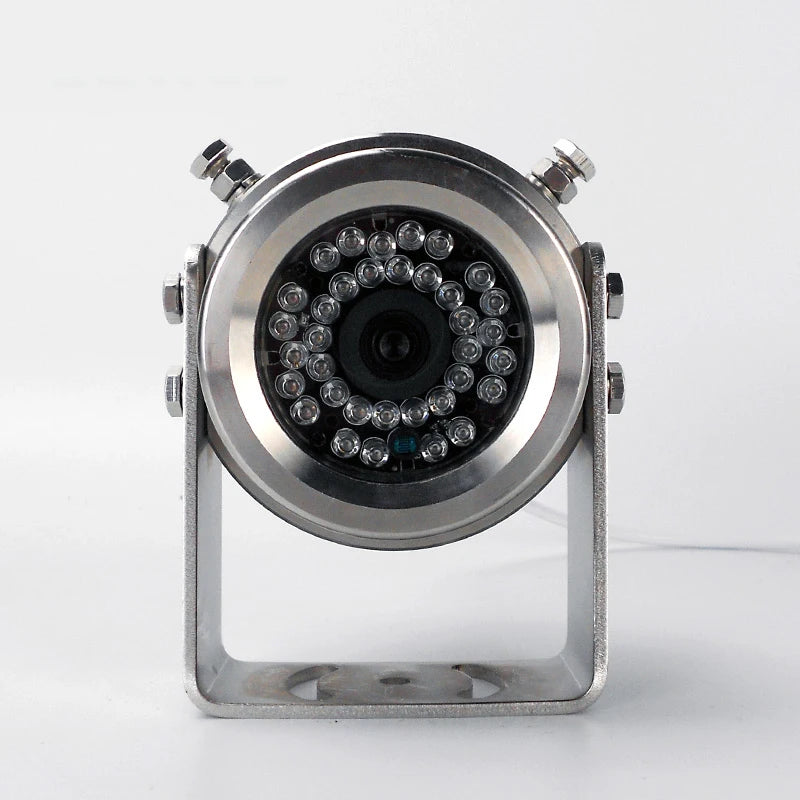

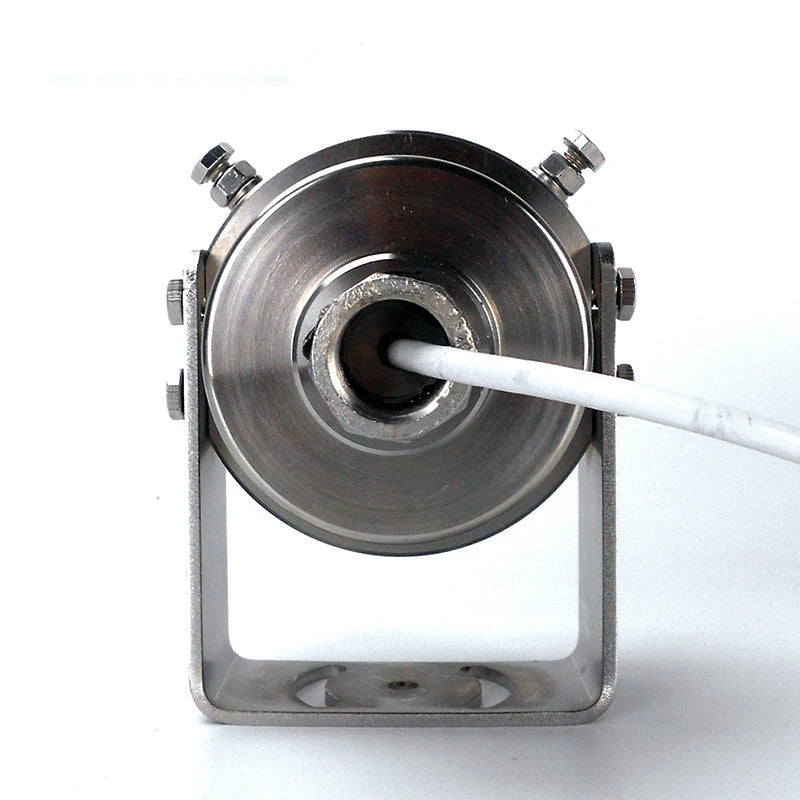

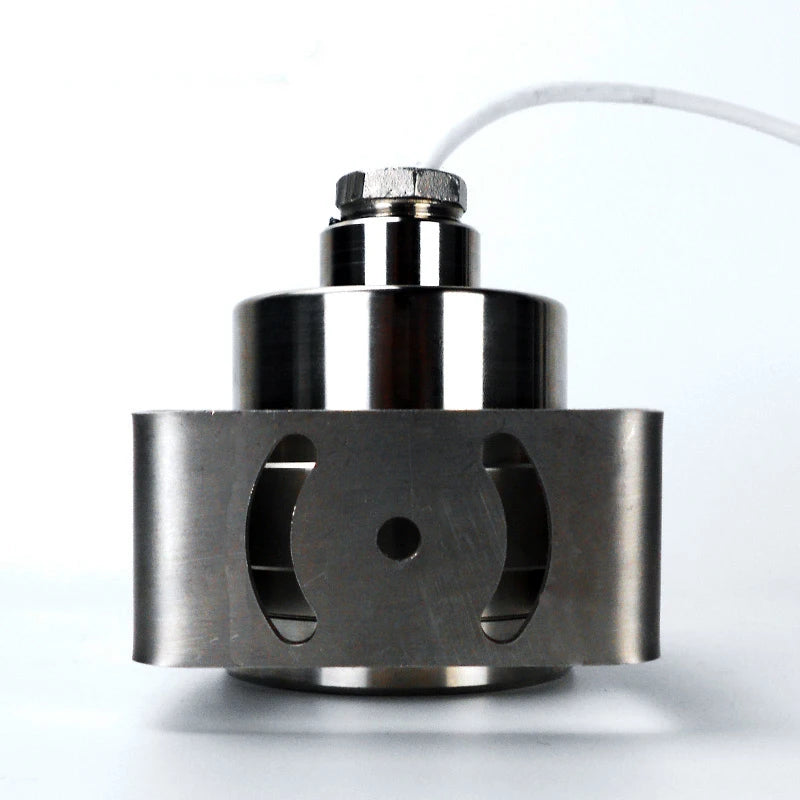

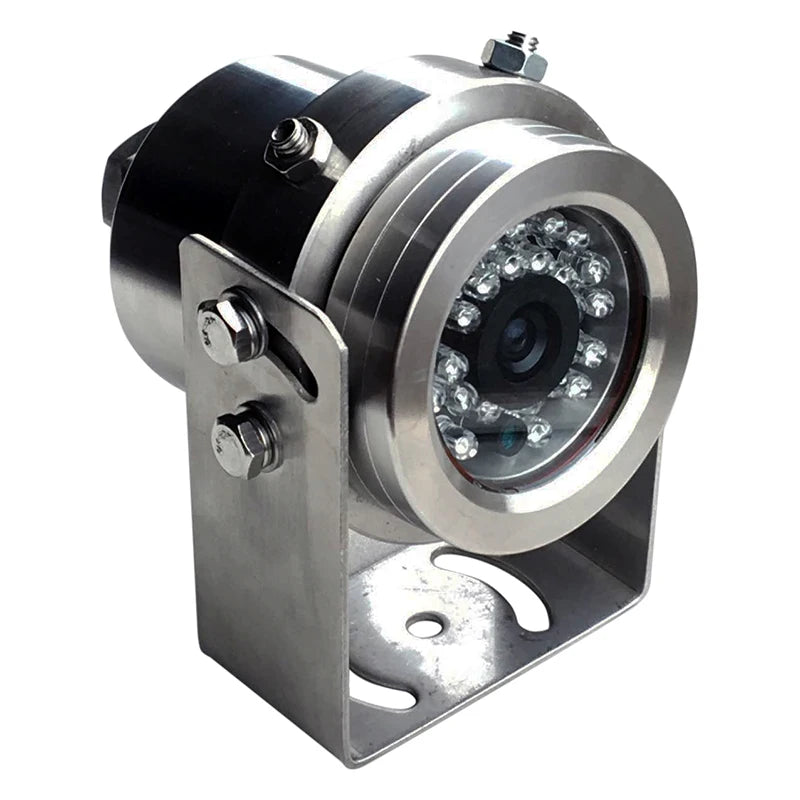

IP68 Explosion Proof 8MP 4K IP Security Camera 304L Stainless Steel Sarvis 2 IMX678 Outdoor CCTV Network Camera SIP-EX01-K678A

Model

SIP-EX01-K678A

Camera Type

4K Explosion Proof Super Starlight 8MP IP Camera

Camera

Image Sensor

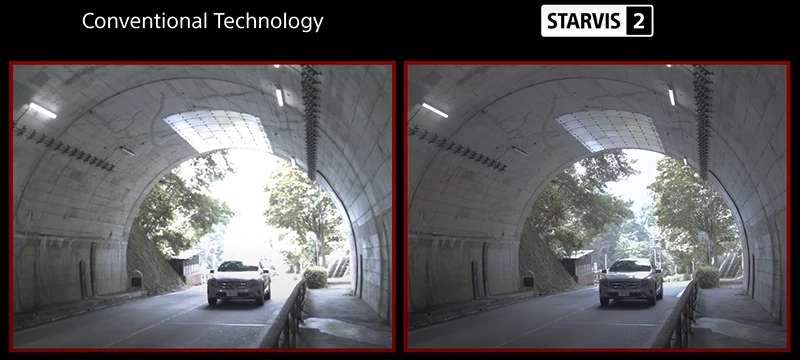

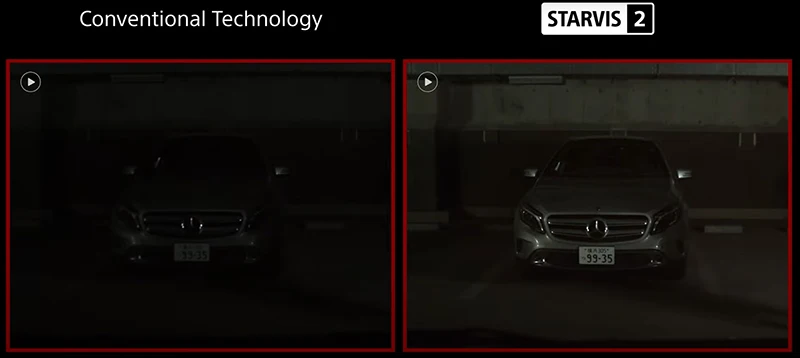

1/1.8" SONY IMX678 CMOS Sensor   STARVIS 2

Effective Pixels

3840 (H) * 2160 (V) approx. 8.29 M pixels

DSP

Hi3516AV300,Cortex A7 900MHz, DDR8Gbit/1G

Min. Illumination

Color: 0.001Lux F1.2(AGC ON), B/W: 0Lux(IR ON)

S/N Ratio

≥50dB(AGC OFF)

Ir-Cut

Support

Day/Night

Color/B&W/Auto

Smart IR/white light

Support

Light mode

Low Level/High Level/PWM

WDR

≥120dB WDR

3DNR

Support

Tonal

Available to set

Brightness

Available to set

Sharpness

Available to set

Contrast

Available to set

Saturation

Available to set

Gamma

Available to set

BLC

Available to set

Mirror image

Open/Close

Flip

Open/Close

HLC

Open/Close

Video Format

PAL/NTSC

Lens Correction

Open/Close

Dehaze

Open/Close

Exposure Strategy

Highlight Priority/Low Light Priority/Auto

Exposure Mode

Auto / Manual

AutoExposure Time

Auto / Manual(1/12s-1/8000s)

Slow Shutter

Open/Close

Gain Mode

Auto / Manual

White Balance Mode

Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable

OSD Settings

Code stream information/display week/display time/channel title/watermark overlay

OSD Display

Color/size/position adjustable

Lens

4.2mm Lens

IR-LED

24 pcs LED

Illuminate Distance

20m

Video/Audio

Video Coding

H.265/H.264

Encoding Scheme

Baseline/Main Profile/High Profile

Resolution

Main stream:3840X2160,2880X1620,2560X1440,1920X1080(1-30fps)

Sub Stream/Three Streams:D1, VGA, (1-30fps)

Frame Rate

1-30fps

Bit Rate

32Kbps-16Mbps

Bitrate Type

Support VBR/CBR

Audio Compression

G.711U/ G.711A/G.726/AAC

Audio Input Mode

Mic In/Line In

Audio Input Gain

Available To Set

Audio Output Gain

Available To Set

Echo

Open/Close

Network

Data Storage

Video Record, Picture Format

Trigger

Manual, automatic (motion detection, alarm, time)

Alarm Data Transmission

Websocket, FTP, Browser

Network Protocol

HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SNMP,SSL/TLS,UPNP,PPPOE,etc.

Transfer Protocol

ONVIF/GB28181/SDK/CGI

Number Of Client Visits

Support 8 Users Login At The Same Time

Browser

IE/Edge/Chrome/Firefox

Network Lost  Recording

Supports

Motion Detection

Supports 4 Area

Hide Detect

Supports 4 Area

General

Network Interface

10M/100M Adaptive Ethernet Port

Power Supply

DC12V1A

Power Consumption

<7W

Working Environment

  -20°C~+60°C , Less Than 90% Rh

Material

304L stainless steel

Waterproof Criterion

IP68

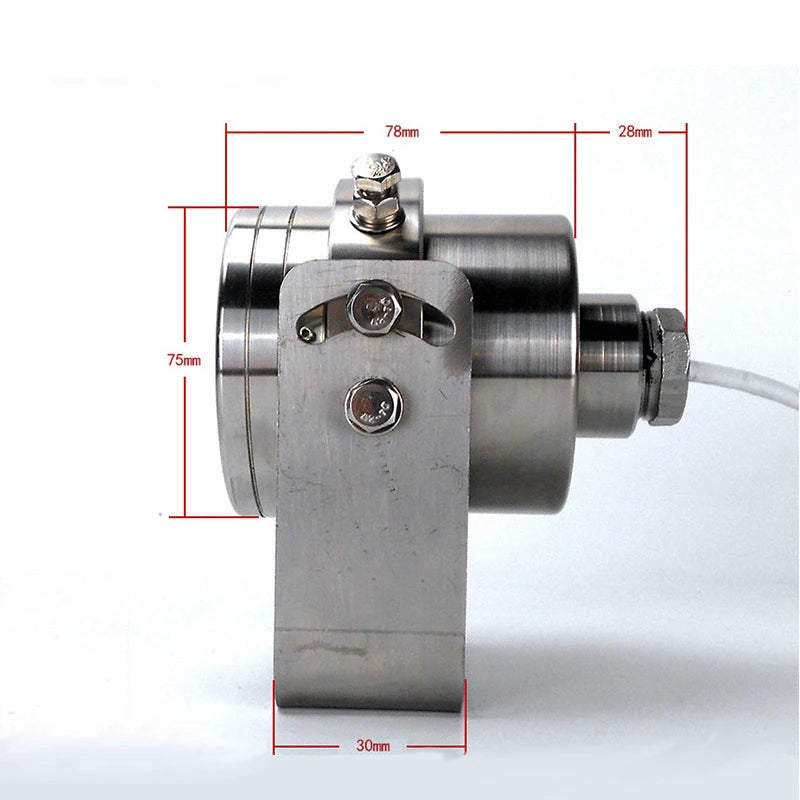

Product Size(L/W/H)

119x106x85mm

Package Size

220mmx120mmx150mm

Net Weight

1.5Kg
