HD 4mp 5mp 8mp IP CCTV Camera module + 48V POE module POE cable Network Security IPC XMEye + lens IRCut
PoE Module + IP camera module + POE cable + Lens + IRCUT the POE camera can be...
SKU:
173454717;2025127;17651466330Hgpp
Availability:
In stock
- $82.99
$123.99- $82.99
- Unit price
- per
Please hurry! Only 10000 left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$82.99
Couldn't load pickup availability
Description
x

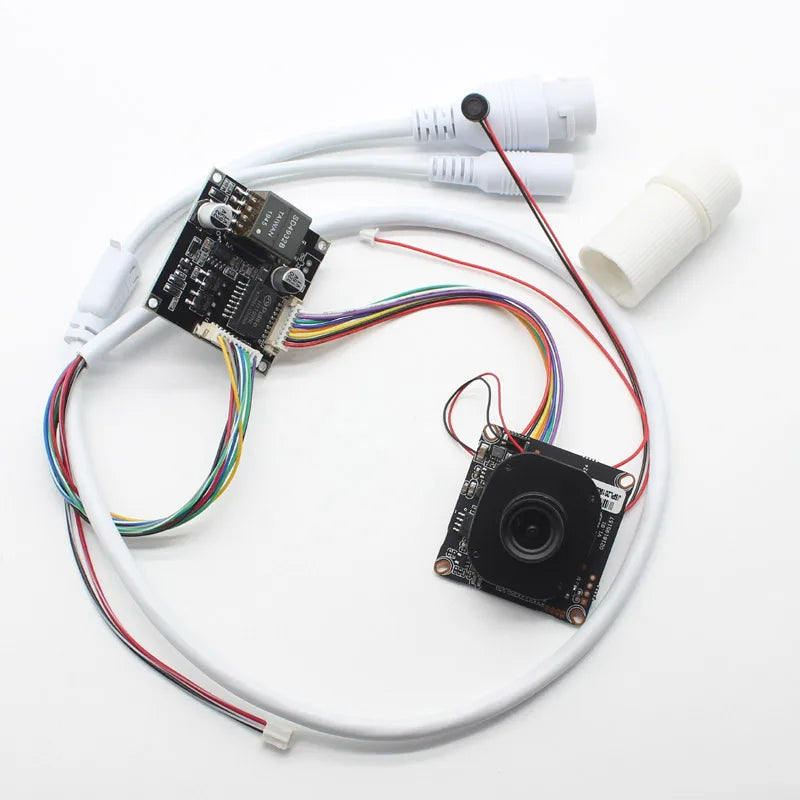

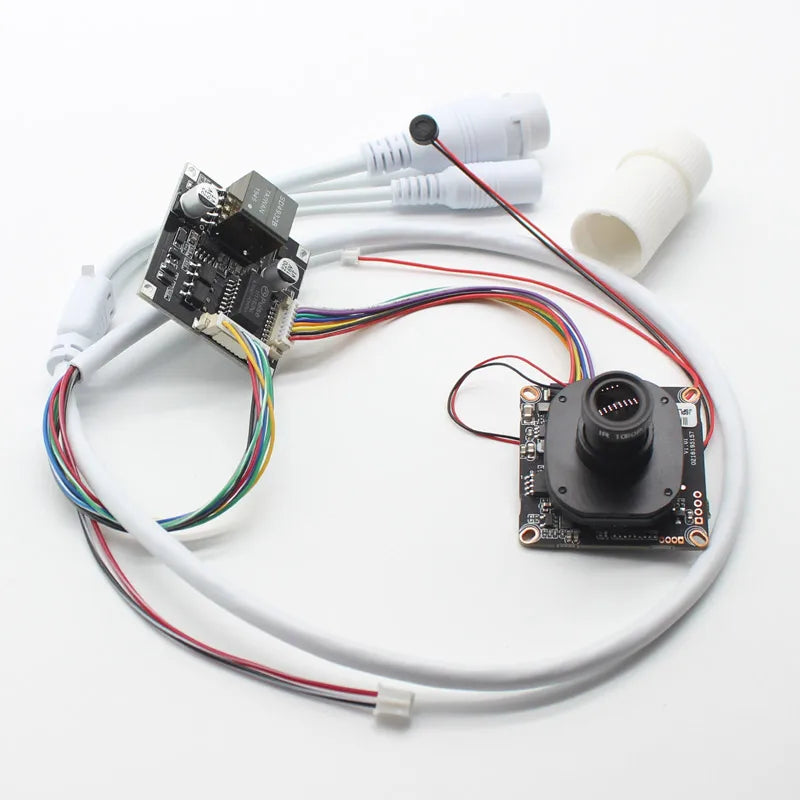

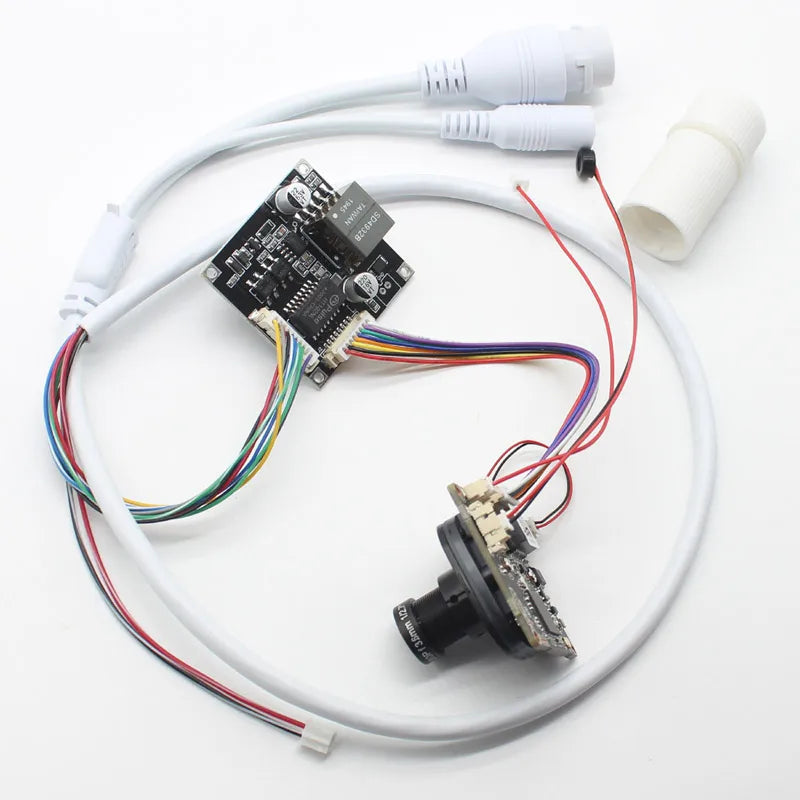

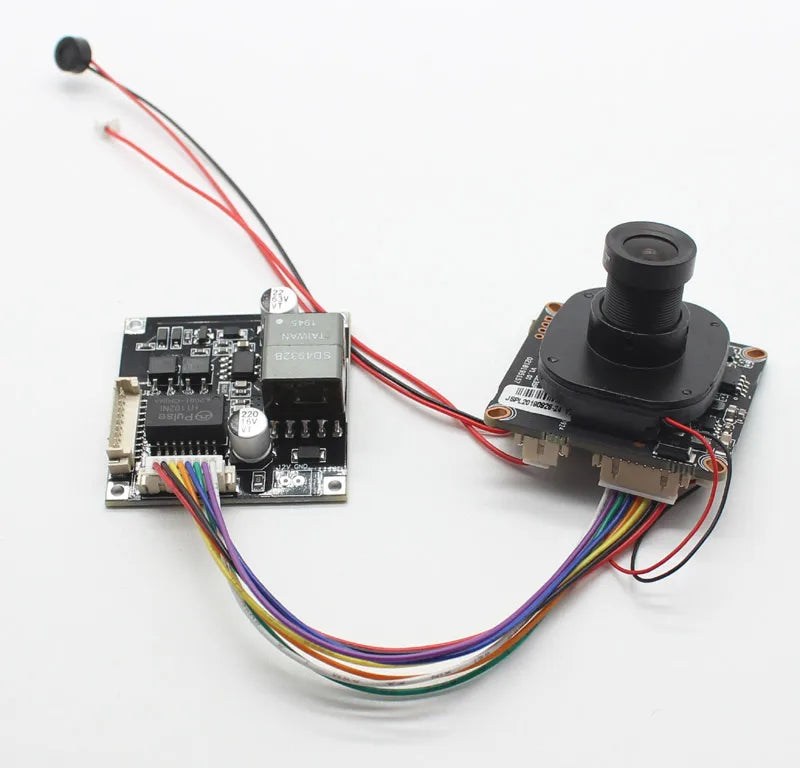

PoE Module + IP camera module + POE cable + Lens + IRCUT
the POE camera can be powered via DC 12V/2A Power, 48V PoE Switch or POE NVR.
4mp/5mp/8mp low illumination POE IP AI Camera module;
Features:
Supporting human detection, face detection, and support to customize other intelligent functions
4.0MP/5.0MP/8.0MP HD Low illumination resolution,clear and fine images;
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
Support ONVIF;access third party;
Support various mobile monitoring(iPhone,Android);
Provide web、CMS、center platform management software MYEYE,provide SDK development
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

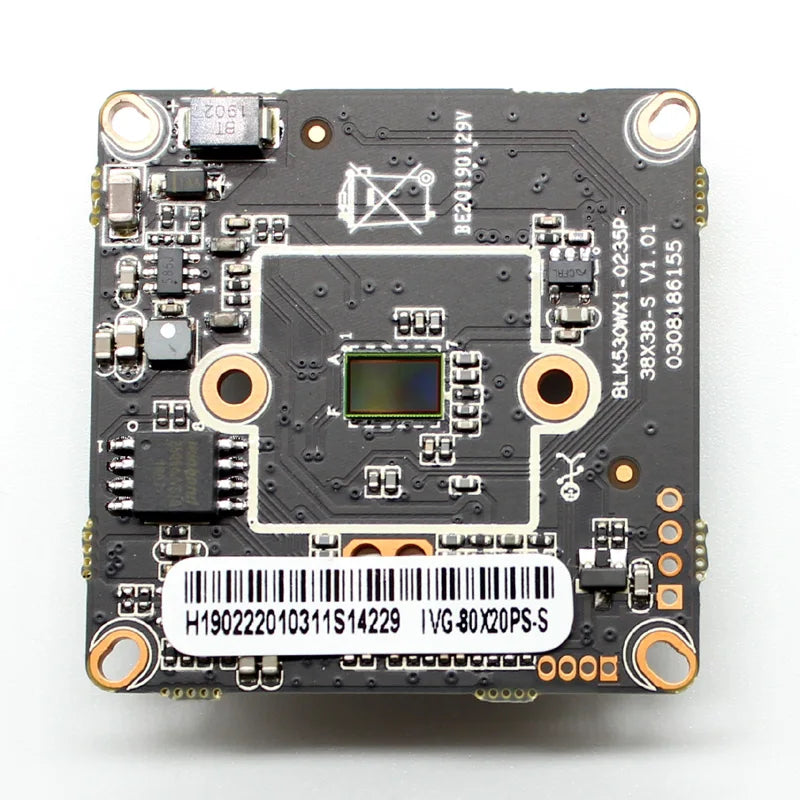

Module 38*38mm size IP PCB Board.

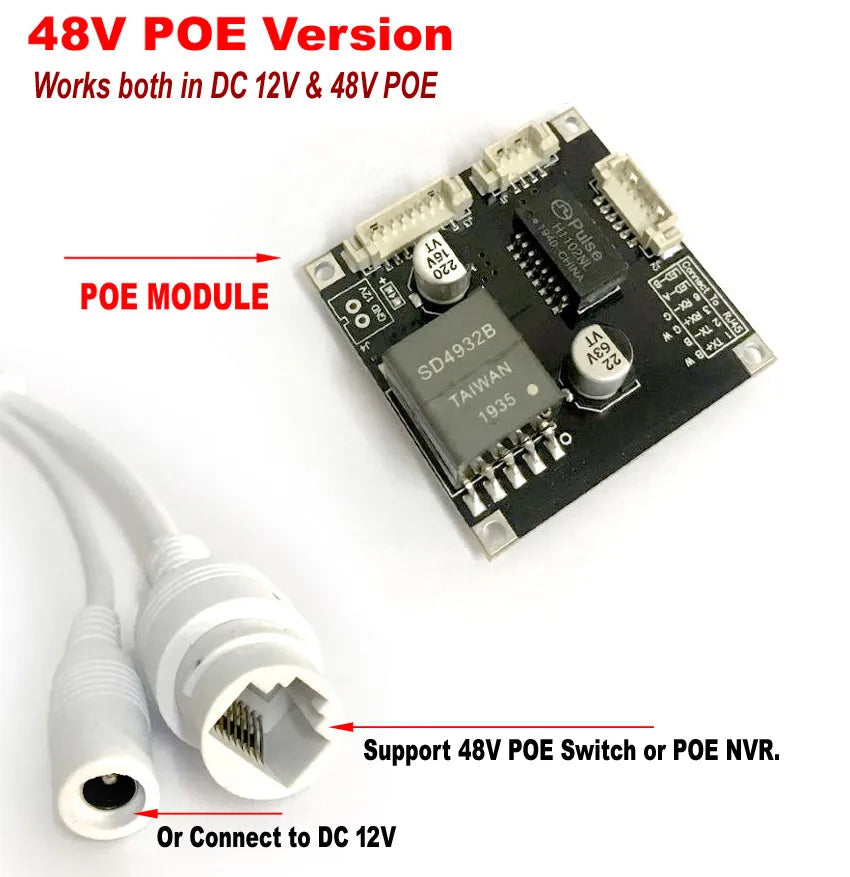

Support POE power supply and POE NVR, it will reduce the trouble of cable arrangement. and this POE meet to 802.3AF/AT standard, it is very stable and reliable for use.
Specifications:
Sensor |
5.0MP 4.0MP 1/2.8" Low illumination CMOS sensor |
System structure |
Embedded RTOS,dual-core 32bit DSP, pure hard compression,watch dog |
Minimum Illumination |
color 0.01Lux/F1.2,black/white 0.001Lux/F1.2 |
Video compression |
H.265AI/H.265+ (Compatible with H.265/H.264), support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
Image output |
Main stream: 8MP: 3840*2160/15fps, 5MP: 2880*1616/25fps, 4MP: 2560*1440/25fps, 3MP: 2304*1296/25fps, 1920*1080/25fps; sub-stream: 800*448/25fps. |
Wide dynamic |
Support digital |
Reliability |
Comprehensive lightning protection, 7 * 24 hours -10℃ ~ 65℃ high temperature stable and reliable testing |
Network interface |
1*RJ45 10/100M adaptive Ethernet port; |
Singal interface |
One photo resistance interface,one IR-CUT interface, |
Shutter |
1/50(1/60)s to 1/10,000s |
Audio compression |
G.711,support bidrectional talk,audio&video synchronization |
Audio interface |
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
Other function |
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIF |
Intelligence analysis |
Supporting human detection, face detection, and support to customize other intelligent functions |
Mobile monitoring |
Support multiple mobile monitoring (iOS, Android) |
Power |
Standard POE Switch, POE NVR or DC 12V/2A |
Note:
1. This product power from 48V POE Switch or POE NVR.
2. It has auxiliary power supply connecter, can be used like a Non-POE IP camera (connect with a 12V/2A adapter), But it will not include the power adapter.
Integrated Monitoring System
System 1: Camera + POE Switch + Router + Computer/Laptop/Smartphone
NOTE: System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
System 2: Camera + POE Switch + Router + NVR + Monitor
POE IP Camera + POE NVR + Router + Monitor:
Packaging included:
1x HD CCTV IP Camera module
1x POE module
1x POE cable
1x IRCUT
1x cctv lens
Warranty Term: One Year Warranty
