DC12V 2-Wire Mini Embedded Electric Bolt Lock Glass Door Security Access Control System

Features

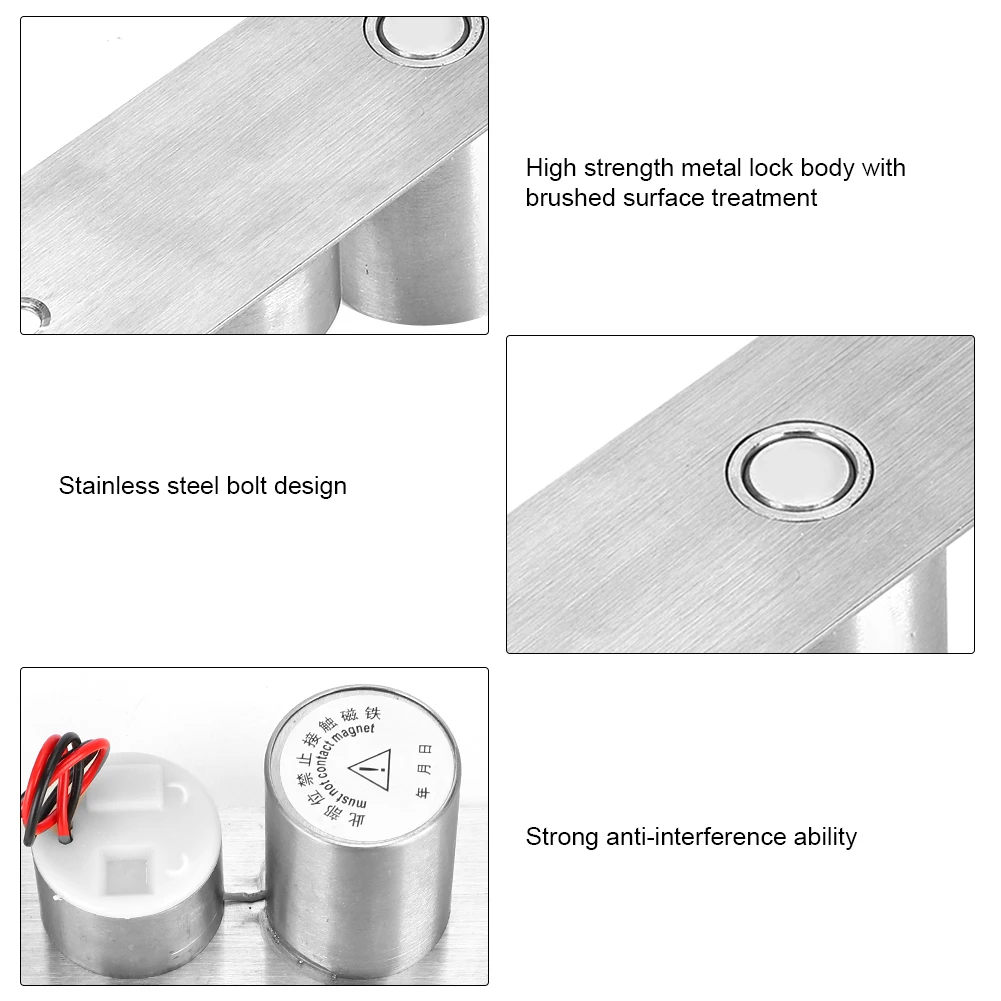

1、Embedded concealed access control electric mortise lock, ultra-low power consumption, energy saving and environmental protection. 2、High strength metal lock body with brushed surface treatment, it can be used for a long time. 3、Stainless steel bolt design, the circuit protection is turned on after power off. Once locked, the bolt will not spring back except power off. 4、The 2-wire electric mortise lock has the function of preventing demagnetization and strong anti-interference ability. 5、Suitable for glass doors, wooden doors, metal doors, security doors and fire doors.

Specification

Condition: 100% Brand New

Item Type: Embedded Electric Mortise Lock

Material: Stainless Steel

Color: As Pictures Shown

Working Power: DC12V

Safety Type: Power on lock, power off unlock

Locking Method: Magnetic Induction

Current: Starting current 0.9A, steady current 0.2A

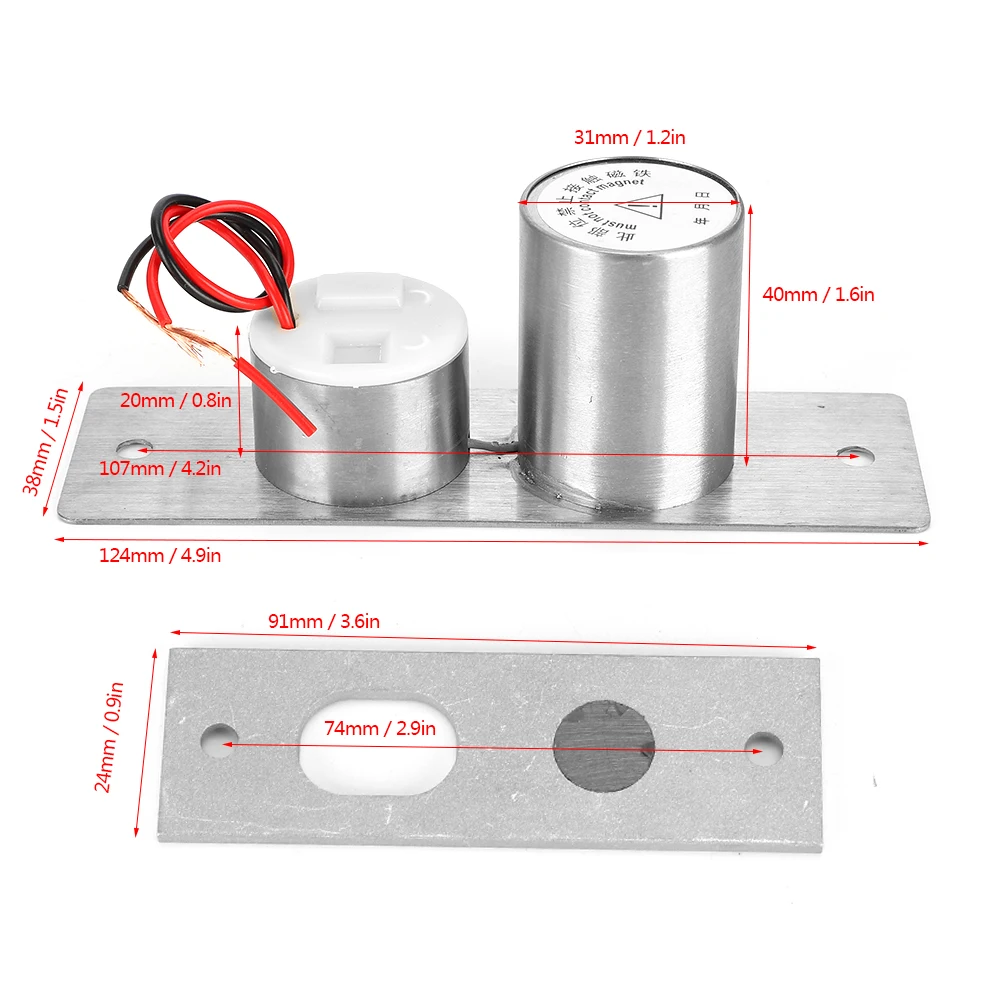

Lock Cylinder Size: Extended Length: Approx. 14mm / 0.6in

Work Type: Continuous Work

Working Humidity: 10-90% RH

Working Temperature: 0-60 ℃

Applicable Door Type: Glass doors, wooden doors, metal doors, security doors and fire doors

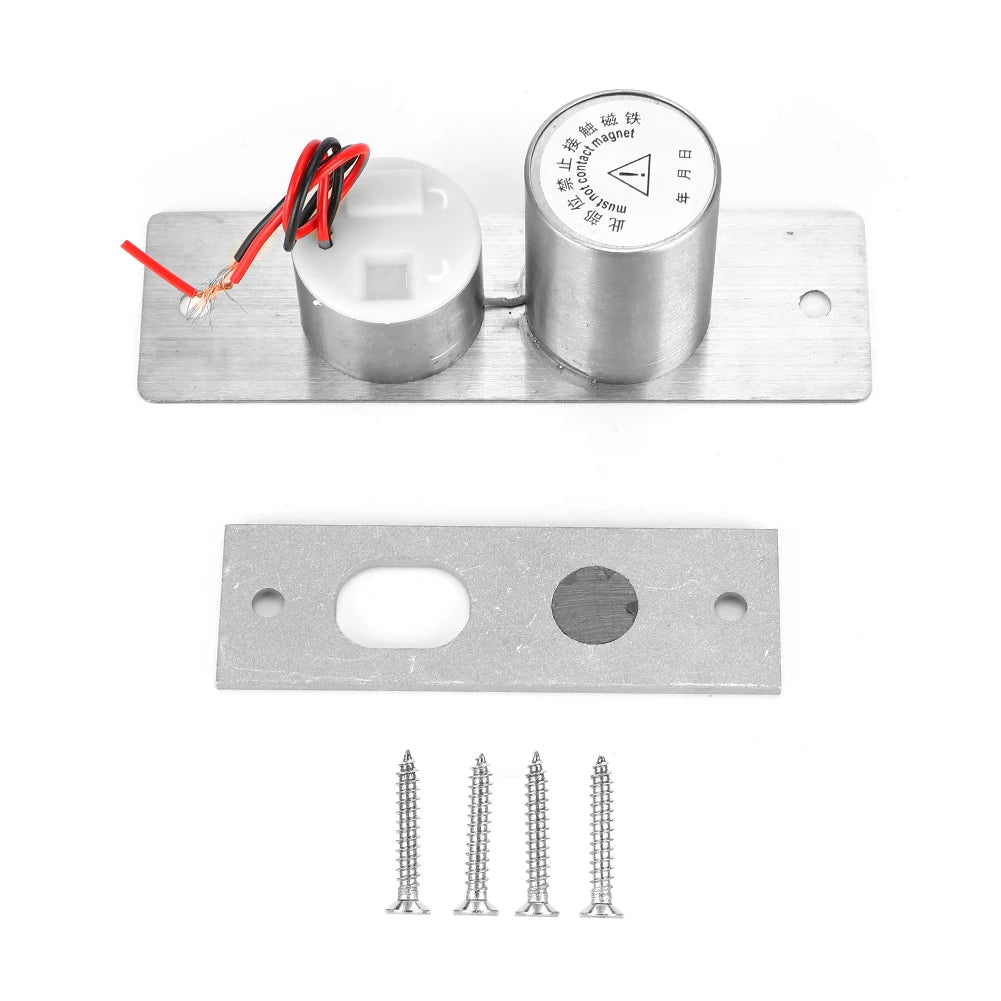

Package List

1 x Electric Mortise Lock

1 x Guard Board

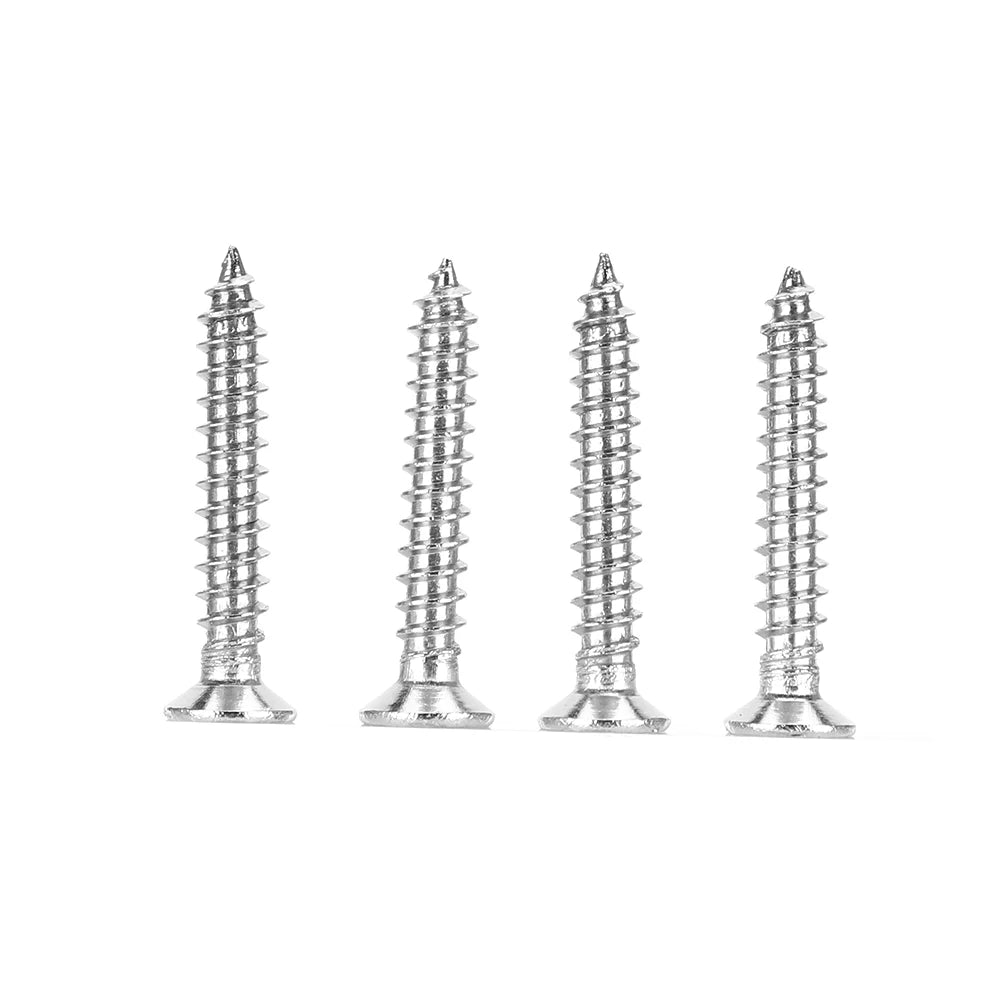

1 x Set of Screw

1 x Manual
