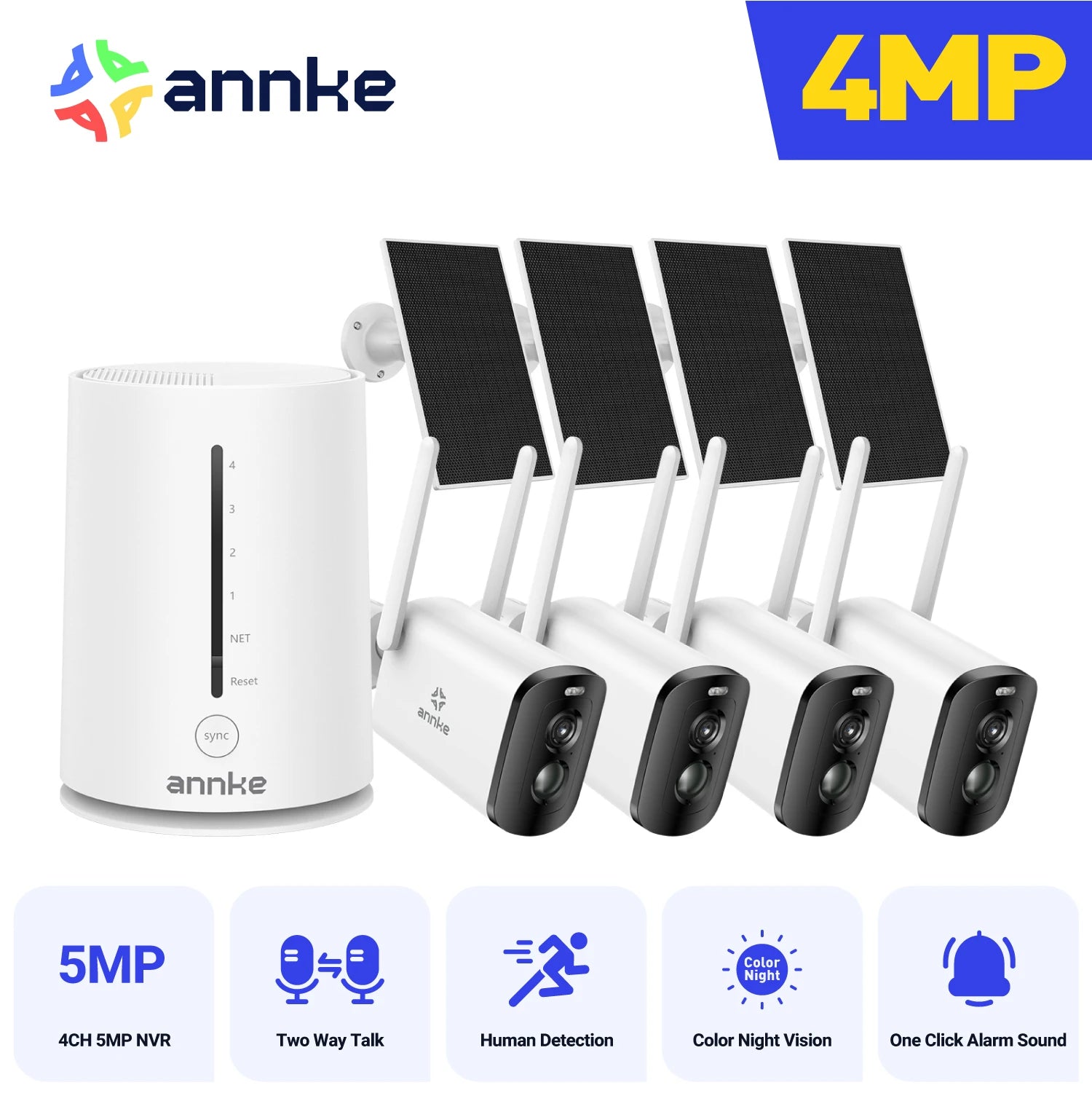

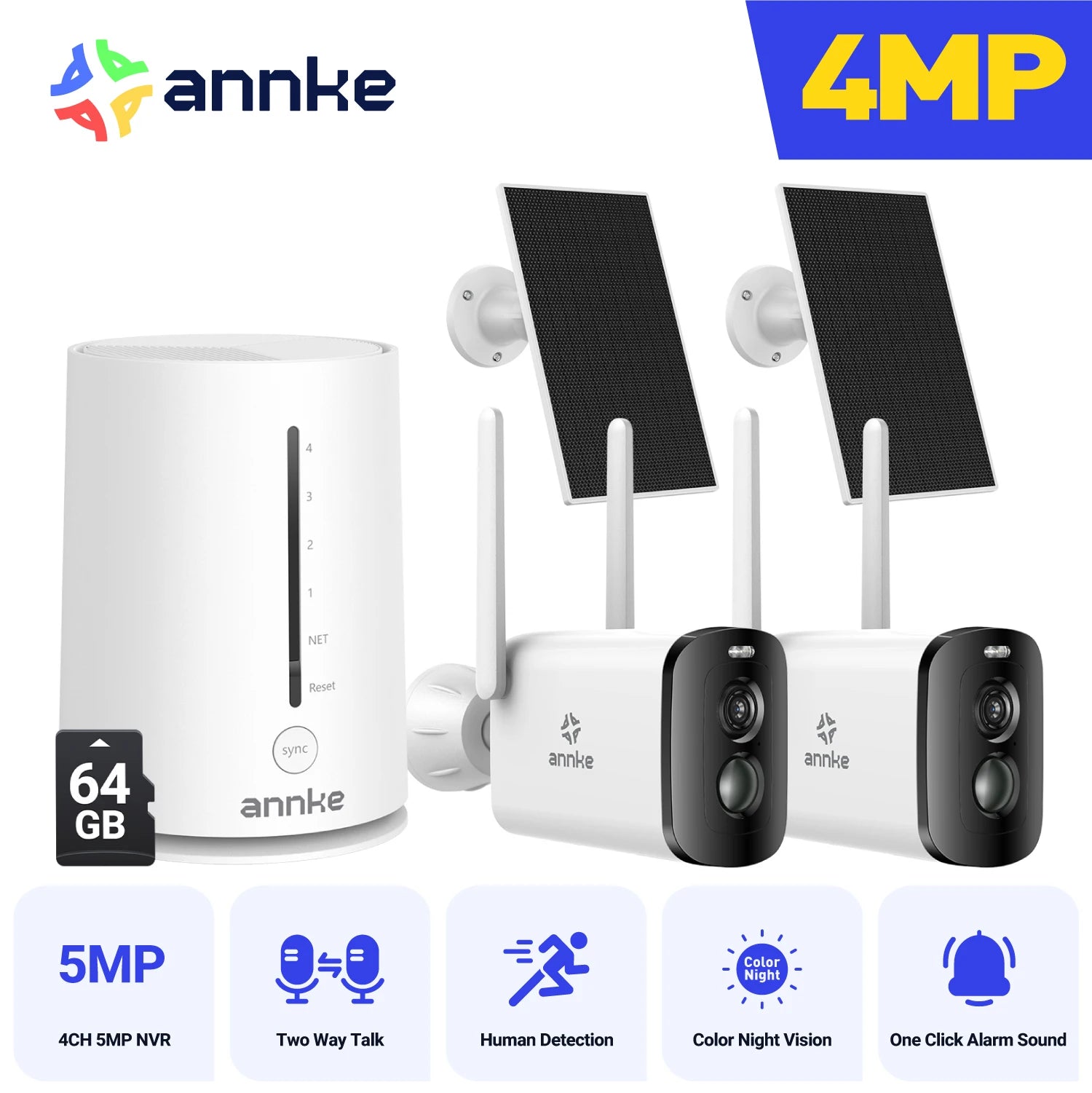

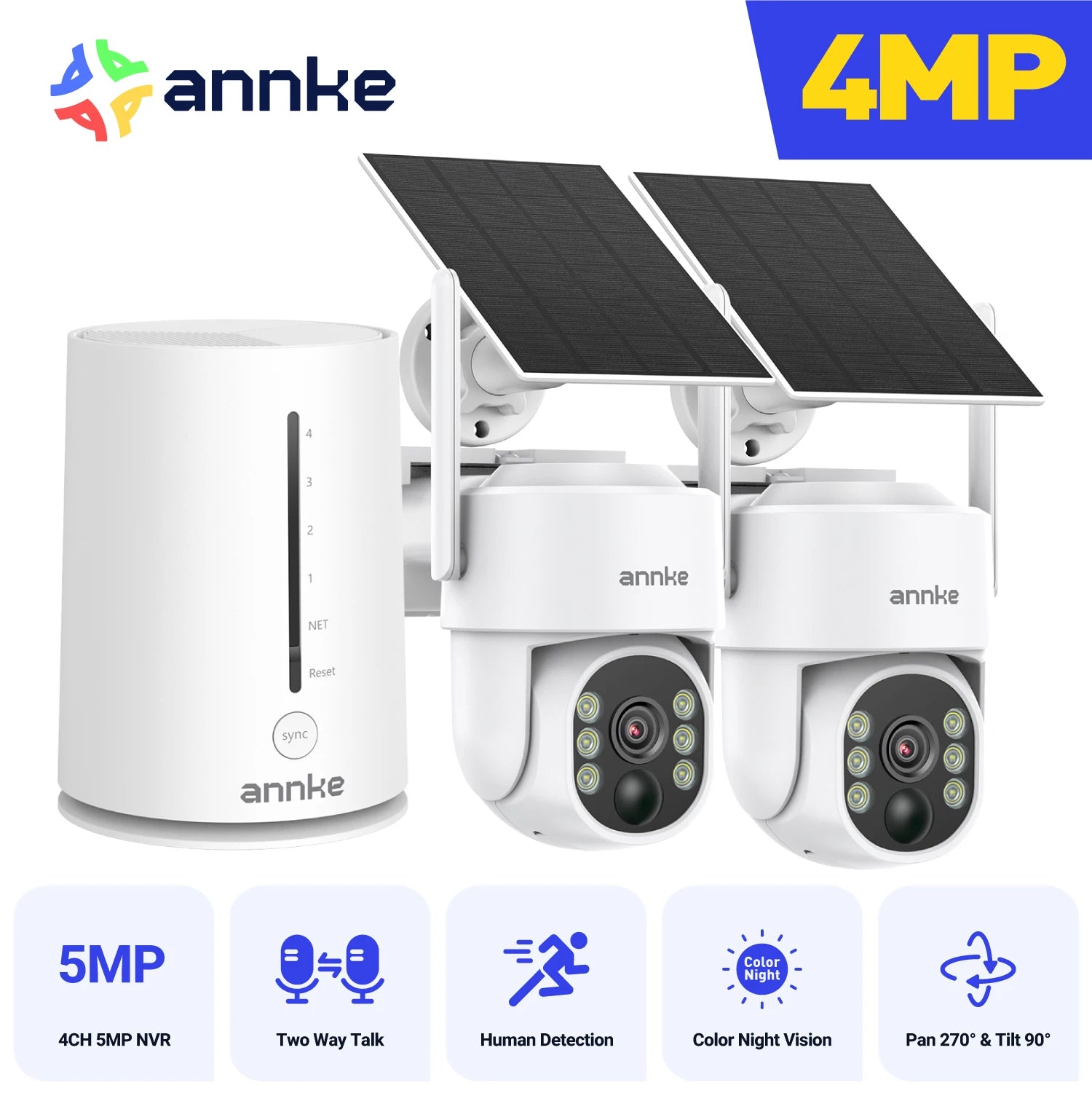

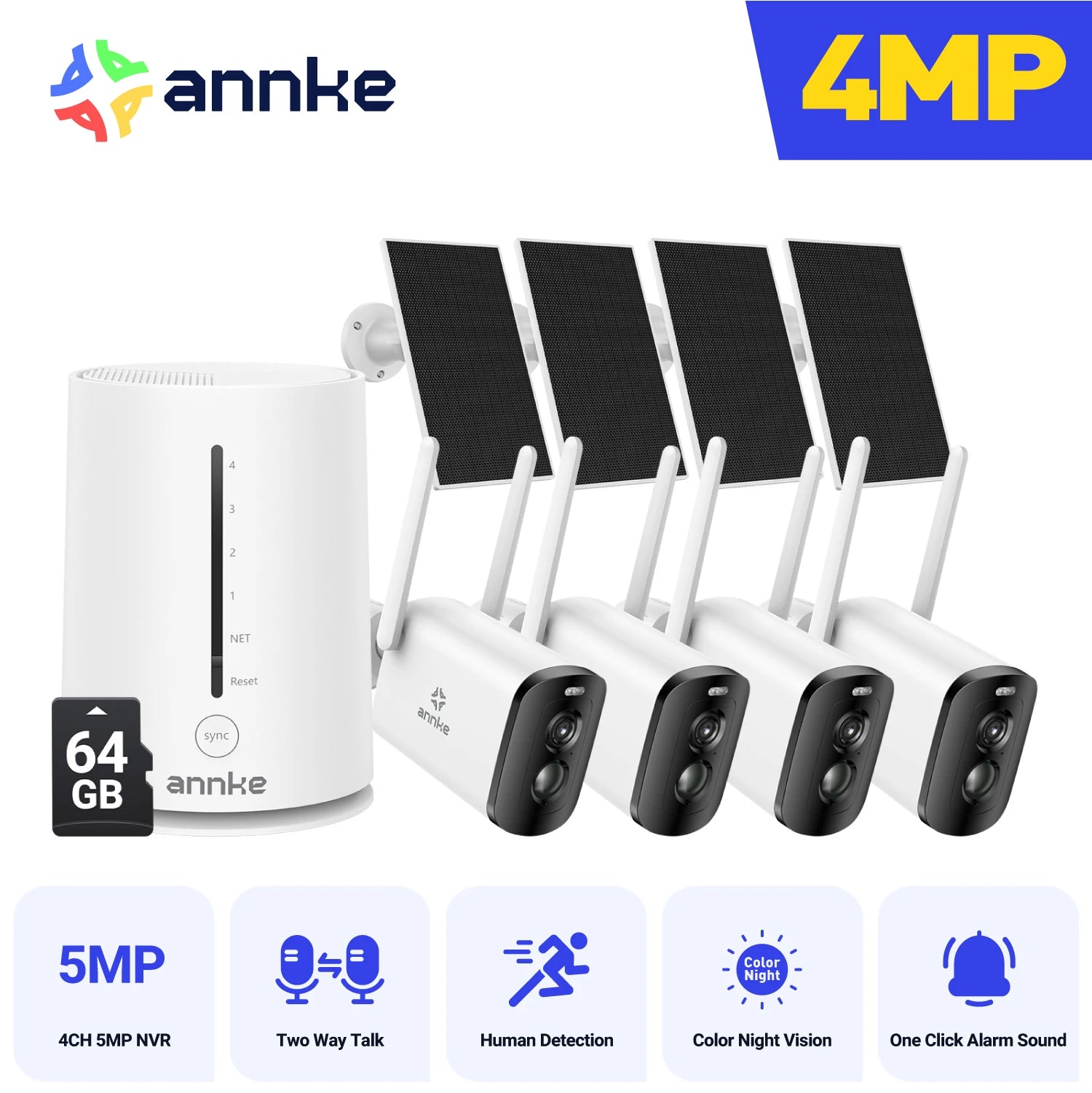

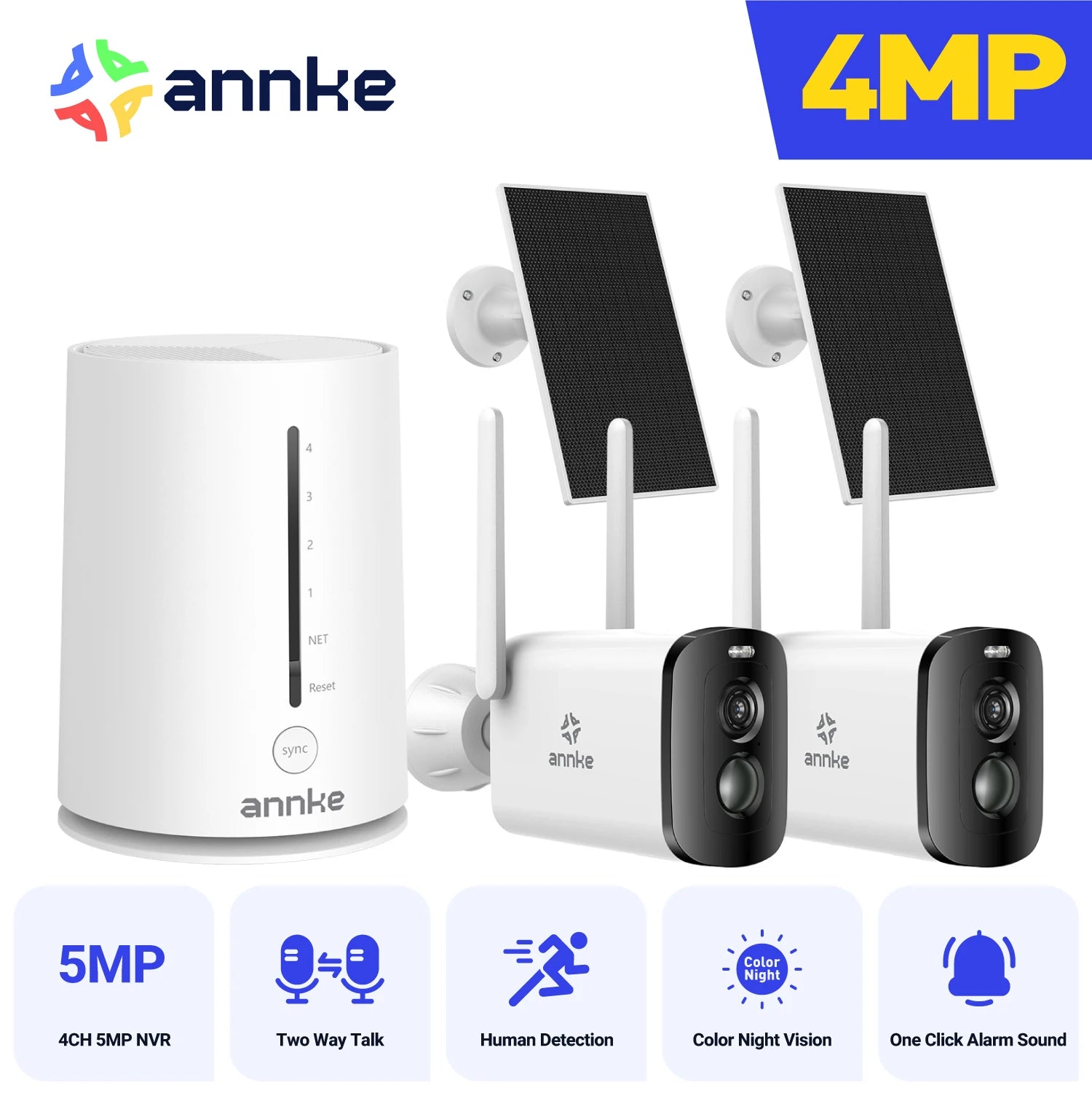

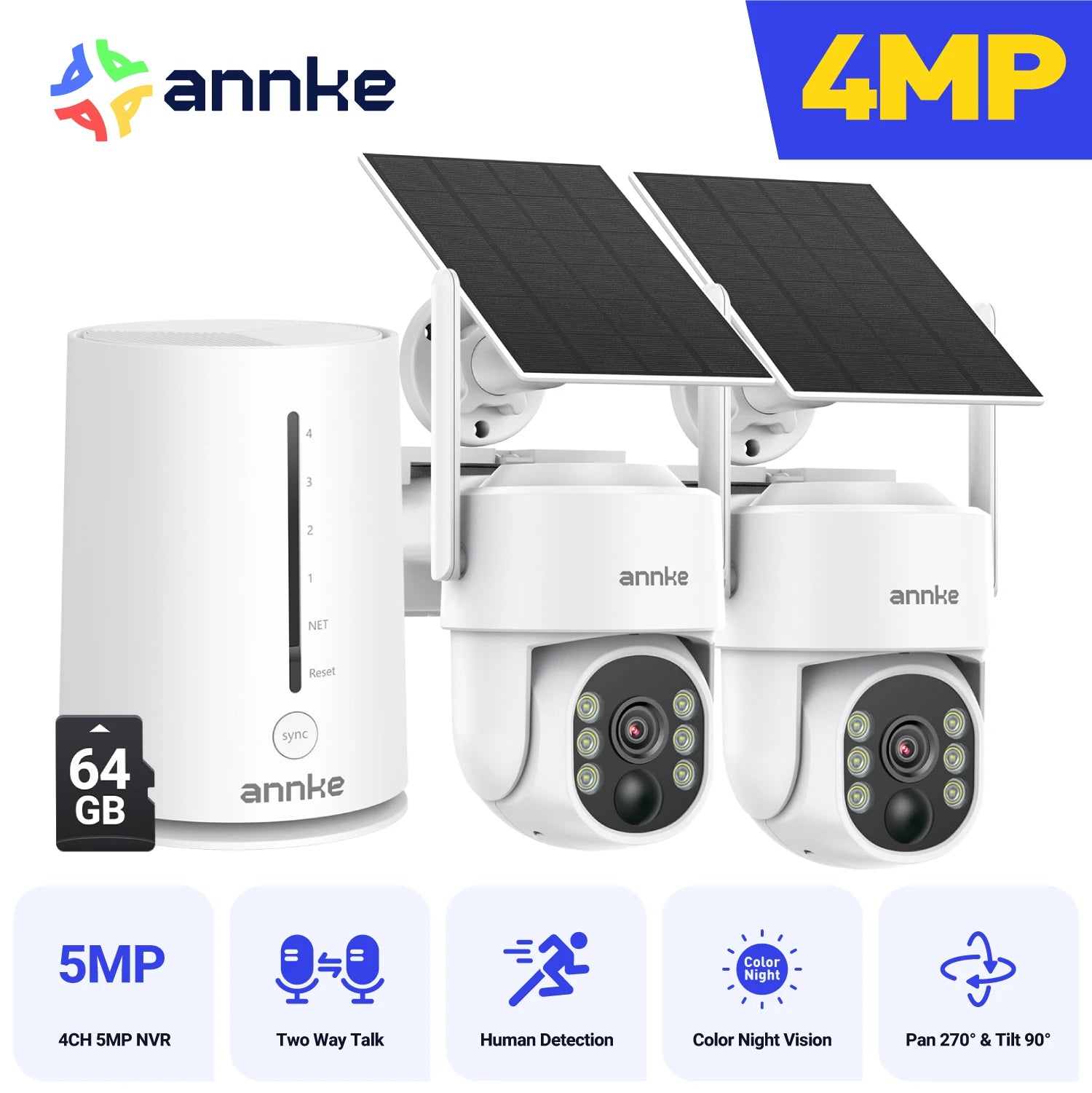

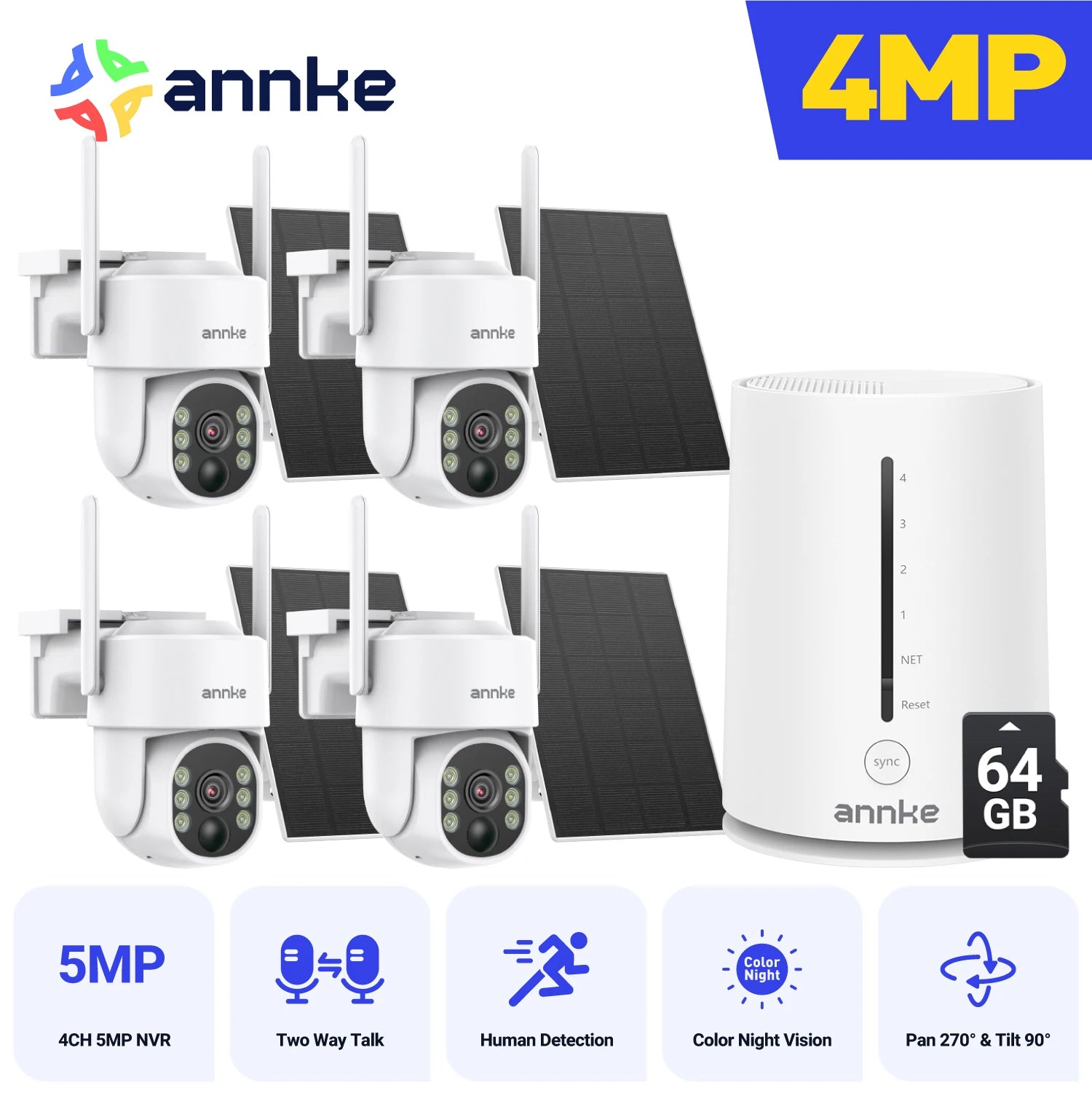

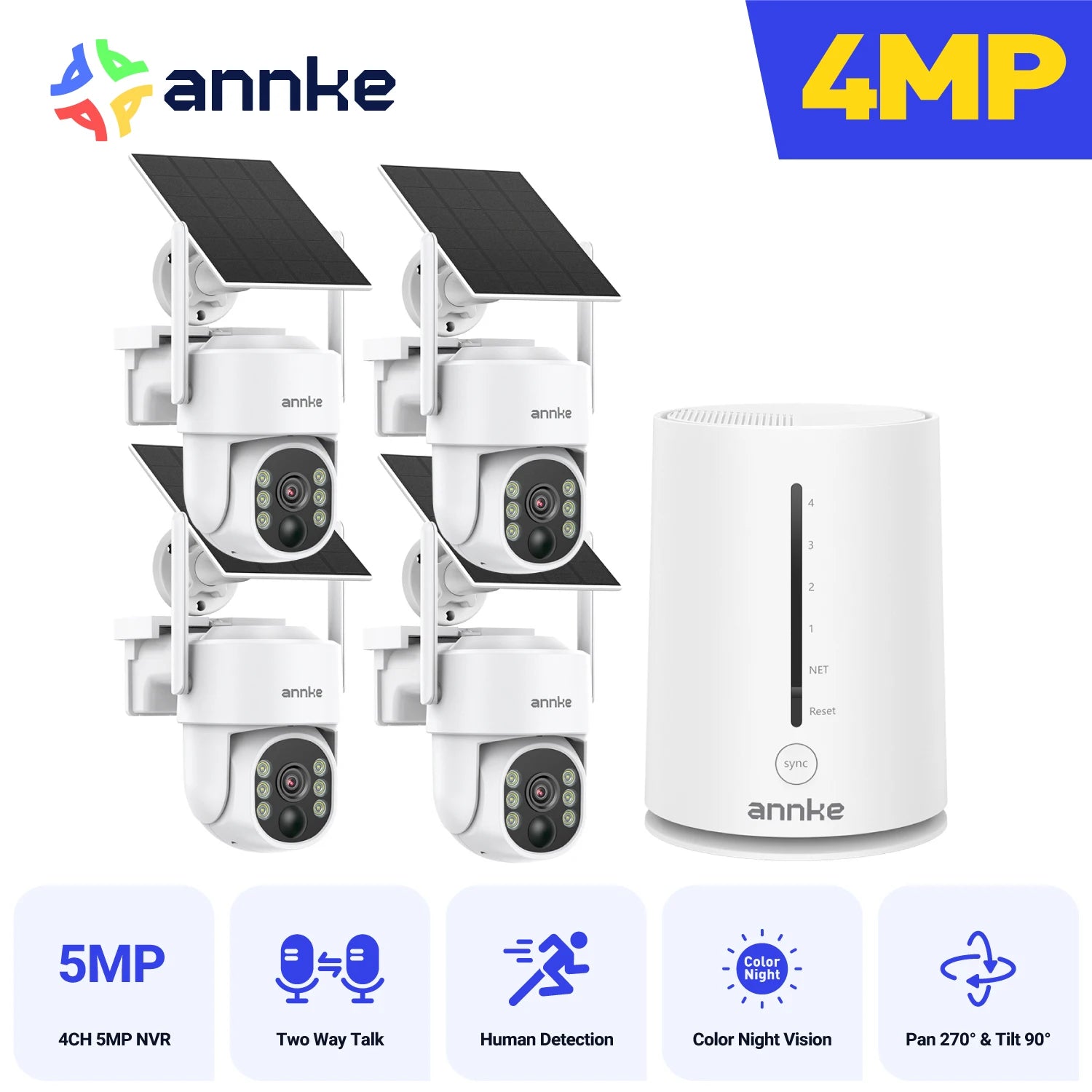

Annke 4MP solar security cameras 4CH Wireless NVR 4mm color night vision camera Audio 2.4G 5.8G dual-band WiFi IP Camera Outdoor

N54WHF

Video Compression

H.264+

IP Video Input

4CH Wireless

IP Video Output

APP，PC Client

Audio Output

Speaker

Max Recording Resolution

Up to 5M(2880x1620)

Max Playback Resolution

Up to 5M(2880x1620)

Max Playback Channel

1CH

Storage

Micro SD Card

Up to 512GB

External Interface

Wireless antenna

Built-in，IEEE802.11b/g/n/ac/ax

Network Interface

Wireless+RJ45(10/100M)

Wireless Standards

2.4G&5.8G dual-band，IEEE 802.11.ax

General

Housing

Plastic

Operating Power

DC5V

Power Consumption

5W

Working Temperature

32 °F ~ 104 °F /0 °C ~ 40 °C

Dimensions(W x H x D)

95×95×130mm

Weight

240g

IP Camera 9000mAh battery I81BM

Camera

Video Resolution

4MP(2560x1440@15fps)

Image sensor

1/3.2" Progressive Scan CMOS

Video compression

H.264+

Audio Compression

G.711A

Audio Intput

Microphone

Audio Output

Speaker

Lens

4mm

Angle of View

70°

Number of Infrared/Color LEDs

6

Infrared and full color Distance

Infrared 15m/Color 8m

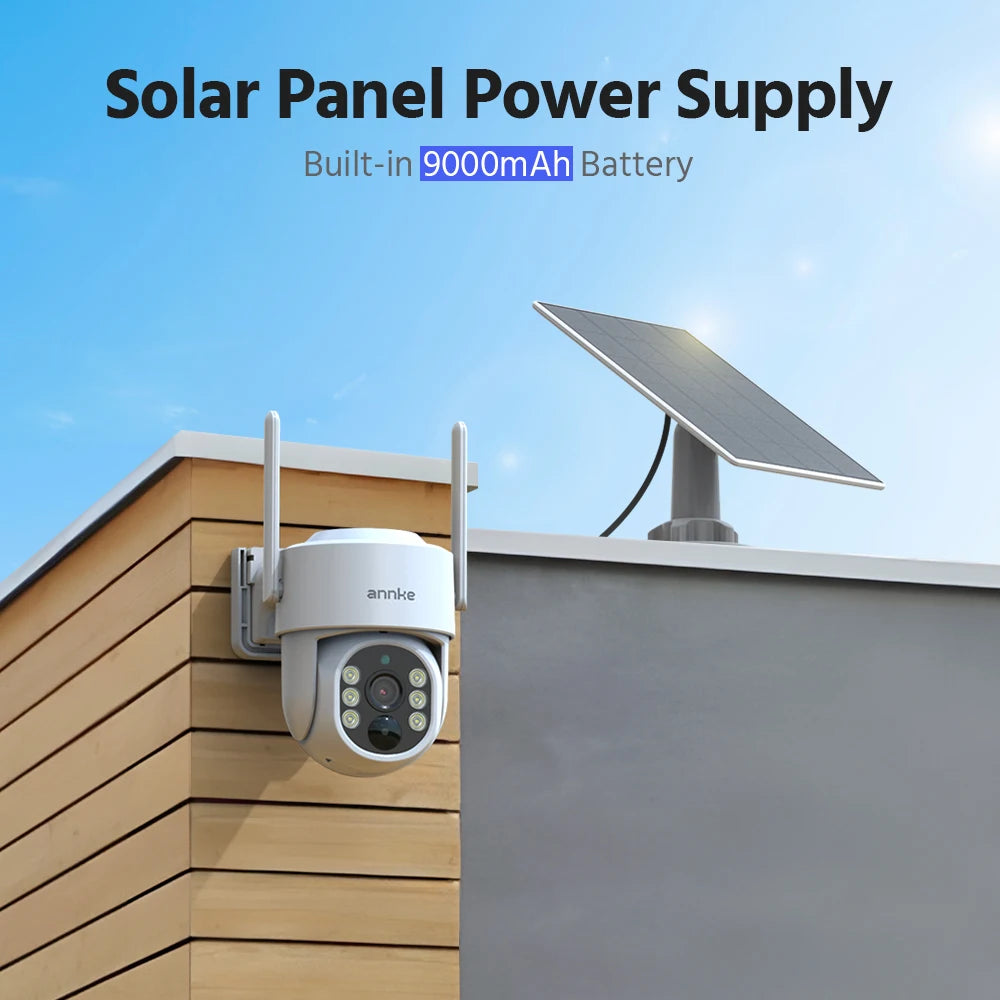

Built-in battery

3.7V/9000mAh 2pcs 21700

PTZ control

Horizontal 270°, Vertical 90°

PIR Sensor

10 meters

Wireless antenna

1 Ports(2.4G&5.8G dual-band，IEEE 802.11.ax)

General

Housing

Plastic

Operating Power

DC5V，Type-C Interface

Operating Temperature

-4 °F – 140 °F /-20 °C – 60 °C

Mount Option

Wall mount

Indoor/Outdoor

Indoor/Outdoor

Weatherproof Rating

IP65

Dimension (L x W x H)

Weight

Camera

Sensor

1/3" CMOS

Focal Length

4 mm

Aperture

F2.0

Optical Field of View

102.9° diagonal, 86.4° horizontal, 46.1° vertical

Minimum Illumination

0.1 lux

IR distance

Night visibility up to 15m , 10M Color Nightvision

Audio

Input

Built-in microphone

Output

Built-in speaker

Two-way Audio

Full duplex

Audio Compressing

AAC

Video

Video Compressing

H.264, H.265

Lighting Frequency

50 Hz, 60 Hz

Frame Rate

15 fps

Maximum Resolution

2560 × 1440

Light Source For Night Vision

White light or infrared LED switchable

Network

Wireless Standard

2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Protocols Supported

TCP/IP, UDP/IP, DHCP, RTMP, MUTP

IP Address Type

Dynamic IP address

Recording

Recording Method

Alarm triggered recording, and manual recording

Video Storage

Cloud storage, local Micro SD card (up to 128 GB), and mobile phone memory

Function

AI Function

Human detection

Wake-up Method

PIR body induction wake-up and remote wake-up

Alarm Notification

Alarm push by mobile app, white LED flashing and alarm sound warning

Indicator

RGB tri-color LED

Battery

Capacity

5200 mAh

Removability

Unremovable

Charging Voltage

5 V ±5%

Charing Current

1.5 A

Protection

Over-charge, over-discharge, over-current, short circuit and charging protection at high and low temperature

Power Consumption

Standby

1.48 mW

Daytime Working

0.95 W

Nighttime Working

1.54W

Interface

Power

TYPE-C

Storage

Micro SD card

Key

Power key and reset key

Installation

Installation Method

Wall mount, ceiling mount,desktop

Bracket Type

1/4'' universal screw hole

Environment

Dustproof and Waterproof

IP65

Operating Temperature

-10℃~ 45℃

Storage Temperature

-20℃~ 60℃

Prodoct Dimension

Dimension

54(L)mm x 118(W)mm x 81mm(H) (without bracket)

Bare Weight

330 g

Material

ABS + PC

Color

White
